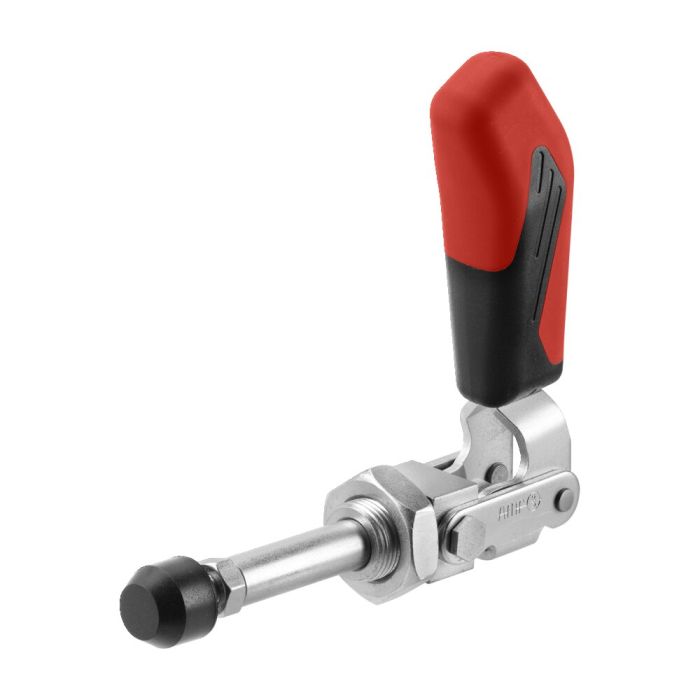

Push-pull type toggle clamp with red handle
Short version, size 5, max. clamping force 4 kN
Order no.
94334
Application:
Toggle for direct fit up in metal plates or fixtures, using its front attaching thread or by means of solid base angle no. 6843.
Also available in "STAINLESS STEEL" version (no. 6844NI).
| Order no. | 94334 |
|---|---|
| Product type | Push-pull type toggle clamp |
| Max. clamping force [kN] | 4 |
| Größe Schnellspanner | 5 |
| Material | Steel, galvanized |
| Handle color | Red |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
