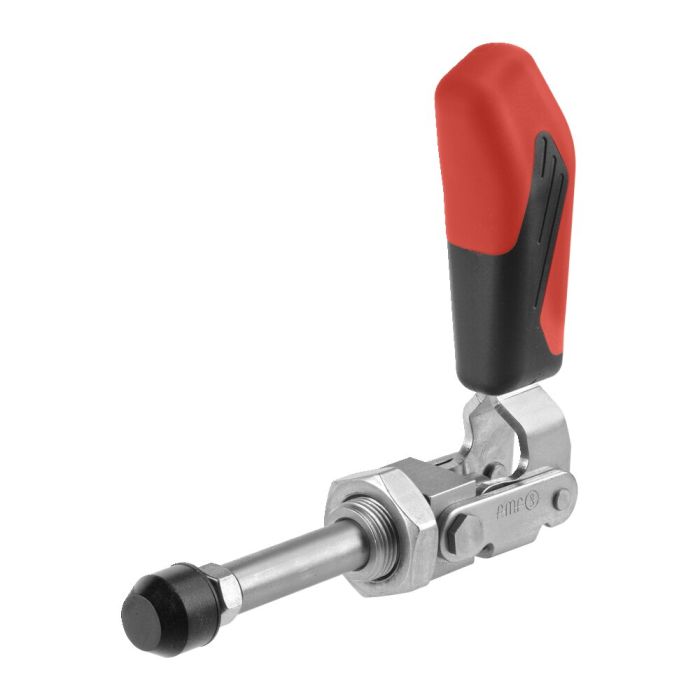

Push-pull type toggle clamp with red handle
Short version, size 5, max. clamping force 4 kN
Order no.
95380
Application:
Toggle for direct fit up in metal plates or fixtures, using its front attaching thread or by means of solid base angle no. 6843NI.
| Order no. | 95380 |
|---|---|
| Product type | Push-pull type toggle clamp |
| Max. clamping force [kN] | 4 |
| Größe Schnellspanner | 5 |
| Material | Stainless steel |
| Handle color | Red |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Rubber nose Nr. 99374 Fits the clamping screws no. 6880, no. 6885, no. 6890 and no. 6892, size M12, key width 18 mm*
