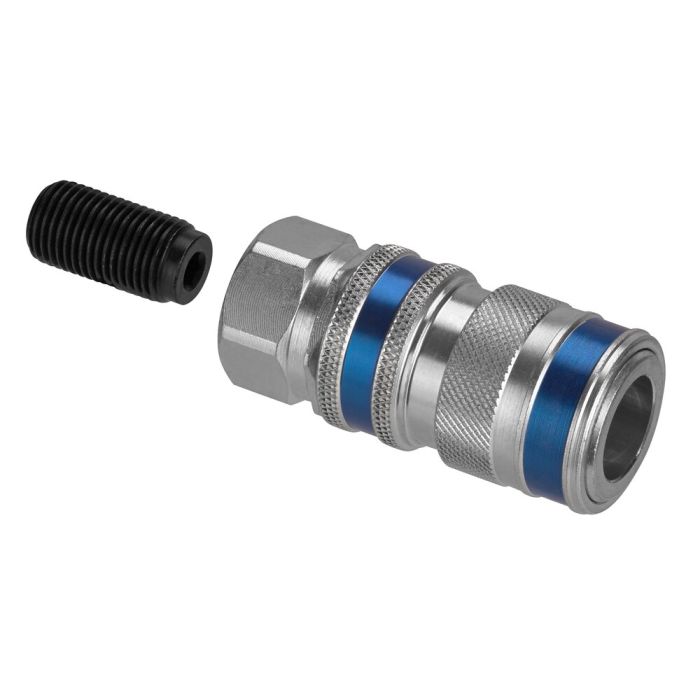

Quick Disconnect Coupler
Sleeve with external thread, max. operating pressure 1000 bar, nominal size 2,5
| Order no. | Article no. | Operating pressure
[bar] | NG | Nominal flow
[l/min] | SW
[mm] | Md
[Nm] | Weight
[g] | Availability | Your Price |
| 111518 | 6990-G1/4A | - | 5 | - | 5 | - | 19 | | |
| 69013 | 6990-G1/4 | 1000 | 2,5 | 6 | 22/24 | 40 - 50 | 250 | | |
| 69021 | 6990-G1/4M | 1000 | 2,5 | 6 | 24 | 40 - 50 | 190 | | |
| 69039 | 6990-G1/4S | 1000 | 2,5 | 6 | 22 | 40 - 50 | 60 | | |
| 69054 | 6990-G1/4BS | - | - | - | | - | 40 | | |
| 69062 | 6990-G1/4M-IG | 1000 | 2,5 | 6 | 24 | 40 - 50 | 190 | | |
| | | | | | | | | |
Design:
Case from aluminium, with retainer.
Note:
Aluminium protective cap prevents contamination of sleeve and connector.
More Information | Order no. | 69021 |
|---|
| Product type | High pressure hose and accessories |
|---|
| Max. operating pressure [bar] | 1000 |
|---|
| Oil port | Thread |
|---|
