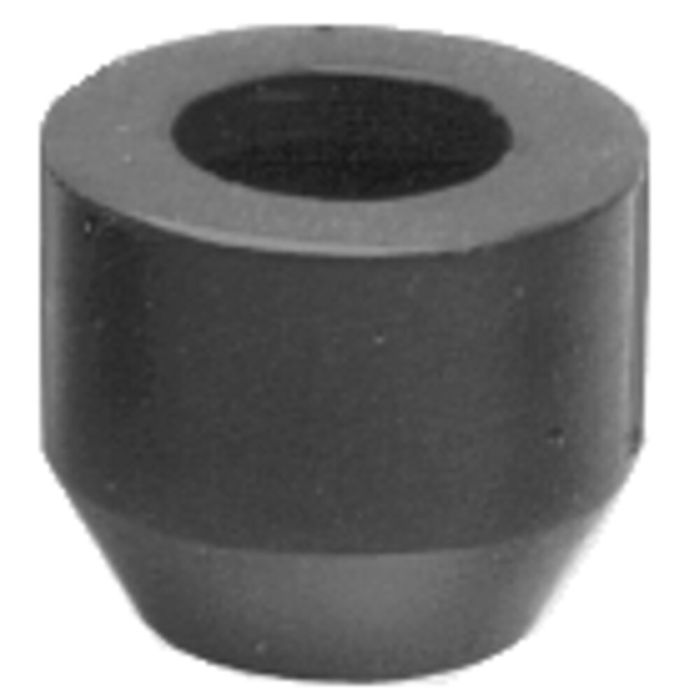

Rubber nose

Fits the clamping screws no. 6880, no. 6885, no. 6890 and no. 6892, size M16

Order no.

99382

Order no.	Size	SW	D	D1	H	H1	Weight [g]
99309	M 4	7	11,0	7	8,5	4,2	1
99325	M 5	8	12,5	8	10,0	5,0	1
99333	M 6	10	15,0	10	12,0	6,0	2
99341	M 8	13	19,0	13	15,0	7,5	4
99358	M10	16	22,0	15	17,5	8,5	5
99366	M12-SW19	19**	26,0	19	20,0	9,5	9
99374	M12-SW18	18*	25,0	18	20,0	9,5	8
99382	M16	24	33,0	24	27,0	14,0	19

* According to new standard ISO 4017 (marked with a "6" on its clamping face).
** According to old norm DIN 933.

More Information
Order no.	99382
Product type	Vertical toggle clamp, Horizontal toggle clamp, Push-pull type toggle clamp
Größe Schnellspanner	, 1, 2, 3, 4, 5, 6, 7, 8
Special features	For delicate workpieces

CAD
