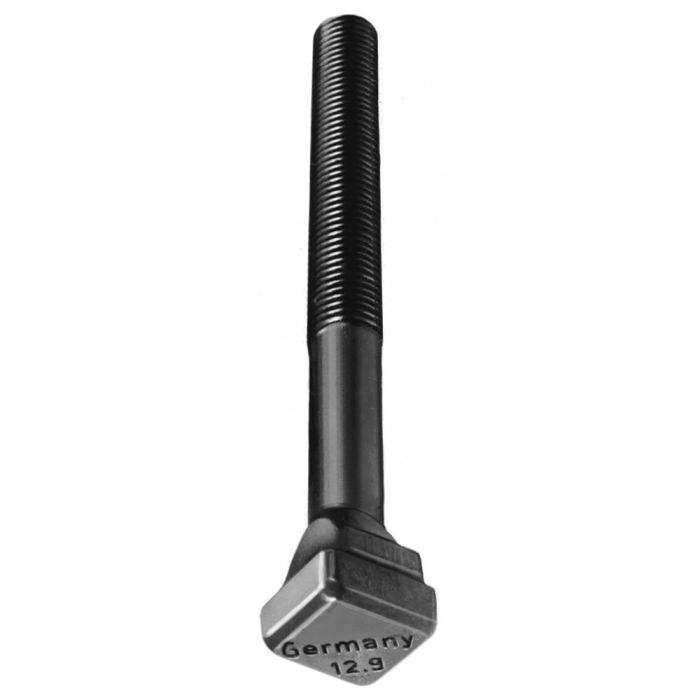

Screws for T-slot, strength class 12.9 Strength class 12.9, thread M20, slot 20 mm, length 160 mm
Order no. D x Slot x L A b E k Packaging Weight Availability Your Price 81281 M30x36x160 35,6 110 54 22 - 1950
81364 M30x36x200 35,6 135 54 22 - 2230
81463 M30x36x250 35,6 150 54 22 - 2555
83923 M10x10x100 9,7 60 15 6 25 70
83956 M10x10x40 9,7 30 15 6 25 30
83972 M10x10x50 9,7 35 15 6 25 40
83998 M10x10x80 9,7 50 15 6 25 60
86140 M12x12x50 11,7 35 18 7 25 60
86157 M12x12x80 11,7 55 18 7 25 75
86165 M12x12x125 11,7 75 18 7 25 110
86173 M12x12x200 11,7 120 18 7 - 160
86181 M12x14x50 13,7 35 22 8 25 70
86199 M12x14x80 13,7 55 22 8 25 100
86207 M12x14x125 13,7 75 22 8 25 120
86215 M12x14x200 13,7 120 22 8 - 180
86231 M12x12x63 11,7 40 18 7 25 65
86256 M12x12x100 11,7 65 18 7 25 90
86264 M16x16x63 15,7 45 25 9 25 140
86272 M16x16x100 15,7 65 25 9 10 180
86280 M16x16x160 15,7 100 25 9 10 270
86298 M16x16x250 15,7 150 25 9 - 380
86306 M16x18x63 17,7 45 28 10 25 160
86314 M16x18x100 17,7 65 28 10 10 203
86322 M16x18x160 17,7 100 28 10 10 280
86330 M16x18x250 17,7 150 28 10 - 430
86348 M20x22x80 21,7 55 35 14 - 330
86355 M20x22x125 21,7 85 35 14 - 428
86363 M20x22x200 21,7 125 35 14 - 570
86371 M20x22x315 21,7 190 35 14 - 820
86389 M24x28x100 27,7 70 44 18 - 650
86397 M24x28x160 27,7 110 44 18 - 800
86405 M24x28x250 27,7 150 44 18 - 1120
86413 M24x28x400 27,7 240 44 18 - 1490
86421 M20x20x80 19,7 55 32 12 - 290
86439 M20x20x125 19,7 85 32 12 - 390
86447 M20x20x200 19,7 125 32 12 - 550
86454 M20x20x315 19,7 190 32 12 - 800
86462 M24x24x100 23,7 70 40 16 - 540
86470 M24x24x160 23,7 110 40 16 - 770
86488 M24x24x250 23,7 150 40 16 - 960
86496 M24x24x400 23,7 240 40 16 - 1410
86611 M12x14x63 13,7 45 22 8 25 80
86629 M16x18x80 17,7 55 28 10 10 185
86645 M16x18x125 17,7 85 28 10 10 230
86678 M12x14x100 13,7 65 22 8 25 110
87304 M12x12x160 11,7 100 18 7 - 135
87320 M12x14x160 13,7 100 22 8 - 150
87346 M16x16x80 15,7 55 25 9 10 160
87361 M16x16x125 15,7 85 25 9 10 225
87403 M16x18x200 17,7 125 28 10 - 330
87429 M20x20x160 19,7 110 32 12 - 470
87437 M20x20x250 19,7 150 32 12 - 670
87445 M20x22x160 21,7 110 35 14 - 500
87510 M20x22x250 21,7 150 35 14 - 680
87577 M24x24x200 23,7 125 40 16 - 900
87585 M24x28x200 27,7 125 44 18 - 950
Advantage: Benefits of thread rolling:
More Information Order no. 87429 Product type Bolts for T-slots Thread [M] 20 Slot [mm] 20 Length [mm] 160 Strength class 12.9
