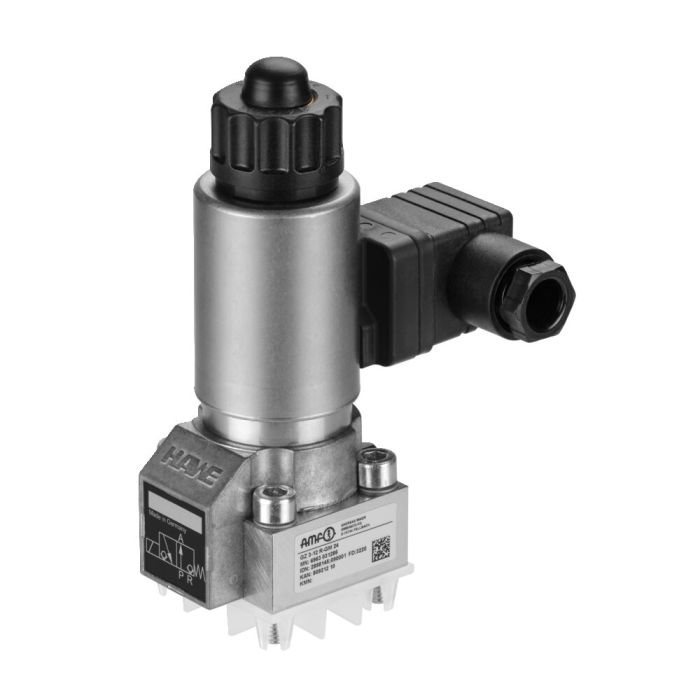

Seat Valve, 3/2-Way
Design:
The ball, being the essential control element, is pressed either by a magnet or a spring onto the hardened ball seats. The blocked flow direction is thus hermetically shut off. The magnets work with or without a shift lever and are designed and checked to VDE 0580. The seat valve has a manual emergency actuator. A check valve is incorporated in channel P.
Application:
The 3/2-way seat valve is used to determine the direction of oil flow. These valves are mainly used for direct control of single-acting cylinders.
Features:
Hermetic sealing by ball seats. Sealing of the oil channels of the valve base with O-rings. The seat valve has completely hydraulic pressure compensation and negative switching.
Note:
The direction of flow must be the direction of the arrow according to the symbol. The position of installation is optional. Hydraulic oil HLP or HLPD according DIN 51524 part 2.
On request:
Directional seat valve with control voltage 230 V AC 50/60 Hz.
| Order no. | 564578 |
|---|---|
| Product type | Seat valve |
| Max. operating pressure [bar] | 500 |
| Oil port | O-ring |
| Design | 3/2 |
| Volume flow [l/min] | 12 |
