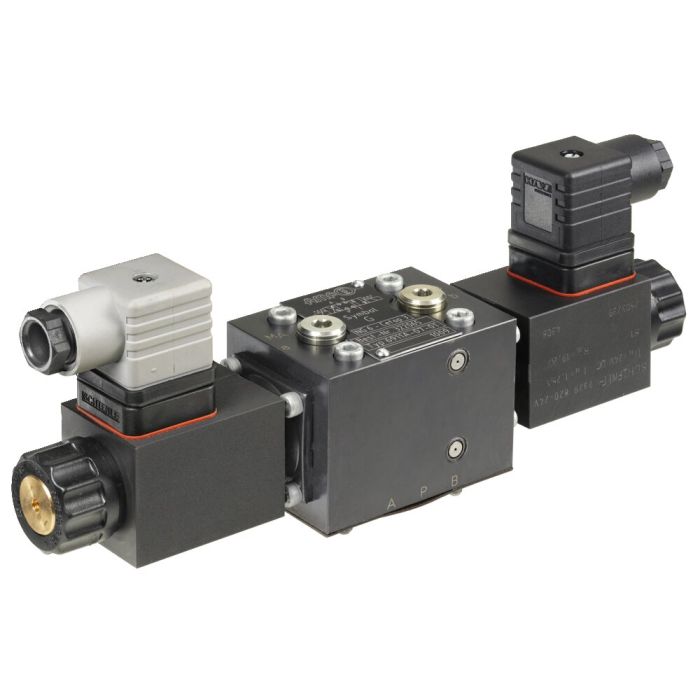

Seat Valve, 3/3-Way
For O-ring connection, max. operating pressure 400 bar, actuation electrical
| Order no. | Article no. | NG | Q
[l/min] | OR-1
O-ring Order No. | Viscosity
[cSt] | U
[V DC] | Weight
[g] | Availability | Your Price |
| 322073 | 6910A-07-02 | 6 | 20 | 493478 | 10-500 | 24 | 2356 | | |
| | | | | | | | | |
| Order no. | Ambient temp.
[°C] | P
[W] | Switching
time on/off
[ms] | Ed to 35°C
[%] | Switching
frequency
per hour | Ingress
protection
|
| 322073 | -40 - +80 | 27,6 | 100/50 | 100 | 2000 | IP67 |
| | | | | | |
More Information | Order no. | 322073 |
|---|
| Product type | Seat valve |
|---|
| Max. operating pressure [bar] | 400 |
|---|
| Oil port | O-ring |
|---|
| Design | 3/3 |
|---|
| Volume flow [l/min] | 20 |
|---|
