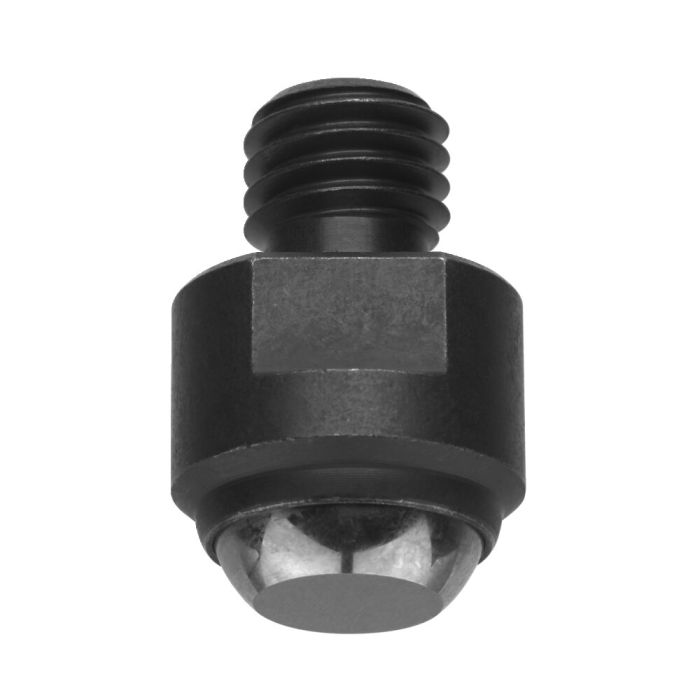

Set screw
With flat-faced ball, thread M12x12
| Order no. | Article no. | G x L | H | dia. l | Dia. K | SW | Load
[kN] | Weight
[g] | Availability | Your Price |
| 285452 | 7110DK-10xM10 | M10 x 10 | 18 | 20 | 10,5 | 17 | 25 | 40 | | |
| 285478 | 7110DK-08xM8 | M8 x 8 | 13 | 13 | 7,2 | 11 | 10 | 13 | | |
| 76059 | 7110DK-20xM20 | M20 x 20 | 35 | 50 | 34,5 | 41 | 165 | 486 | | |
| 77446 | 7110DK-12xM12 | M12 x 12 | 18 | 20 | 10,5 | 17 | 25 | 43 | | |
| 77453 | 7110DK-16xM16 | M16 x 16 | 27 | 30 | 20,0 | 20 | 90 | 150 | | |
| | | | | | | | | | |
More Information | Order no. | 77446 |
|---|
| Product type | Set screw |
|---|
