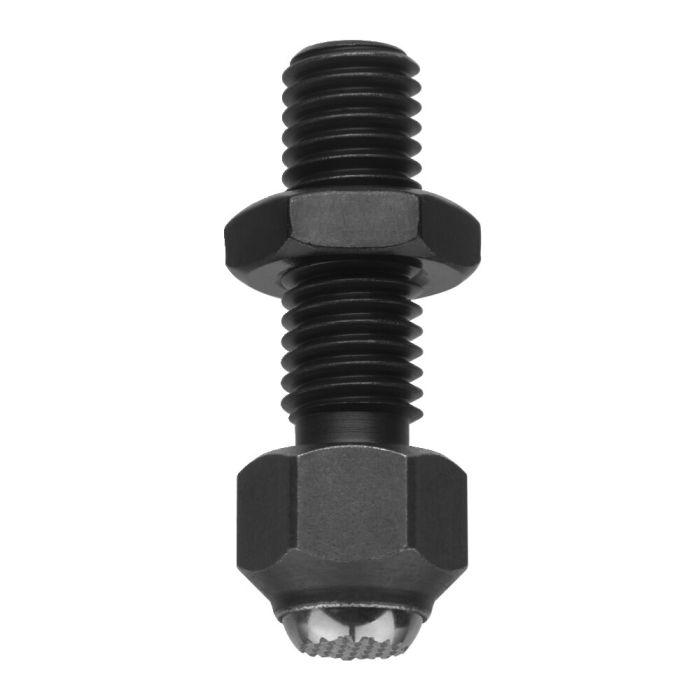

Set screw
With flat-faced ball, adjustable, ribbed, thread M16x40
| Order no. | Article no. | G x L | H | Dia. K | SW1 | SW2 | Load
[kN] | Weight
[g] | Availability | Your Price |
| 83931 | 7110DH-20xM20 | M20 x 50 | 27,3 | 20,0 | 30 | 30 | 90 | 274 | | |
| 87858 | 7110DH-12xM12 | M12 x 35 | 15,7 | 8,6 | 17 | 19 | 15 | 56 | | |
| 87874 | 7110DH-16xM16 | M16 x 40 | 20,7 | 10,5 | 24 | 24 | 25 | 128 | | |
| 87890 | 7110DH-08xM8 | M8 x 25 | 11,6 | 5,5 | 13 | 13 | 8 | 20 | | |
| 87916 | 7110DH-10xM10 | M10 x 30 | 15,7 | 8,6 | 17 | 17 | 8 | 44 | | |
| | | | | | | | | | |
More Information | Order no. | 87874 |
|---|
| Product type | Set screw |
|---|
