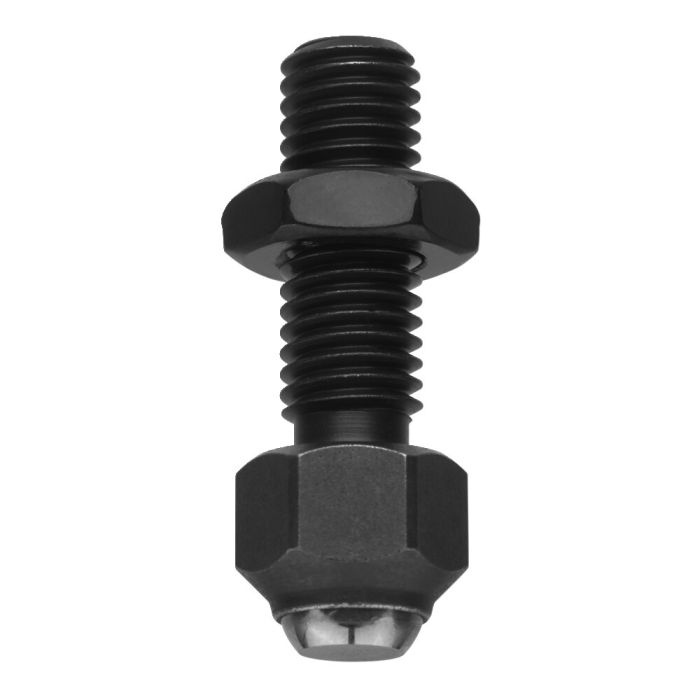

Set screw with ball
Smooth, thread M20, length 50 mm
| Order no. | Size | G | H | Dia. K | L | SW1 | SW2 | Max. load static
[kN] | Max. tightening torque
[Nm] | Weight
[g] | Availability | Your Price |
| 374454 | M8 | M8 | 11,6 | 5,8 | 25 | 13 | 13 | 8 | 25 | 20 | | |
| 73684 | M12 | M12 | 15,7 | 8,6 | 35 | 17 | 17 | 15 | 82 | 55 | | |
| 73718 | M16 | M16 | 20,7 | 10,5 | 40 | 24 | 24 | 25 | 206 | 128 | | |
| 73726 | M20 | M20 | 27,3 | 20,0 | 50 | 30 | 30 | 90 | 407 | 275 | | |
| | | | | | | | | | | | |
More Information | Order no. | 73726 |
|---|
| Clamping screw | Without clamping bolt |
|---|
| Clamping screw metric [M] | 20 |
|---|
