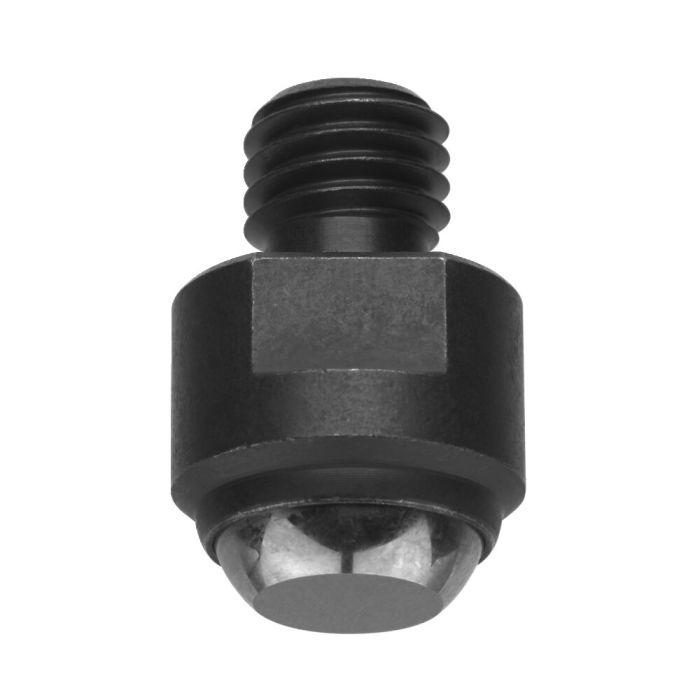

Set screw with ball, plain
| Order no. | Size | G | H | dia. l | Dia. K | L | SW | Max. load static
[kN] | Max. tightening torque
[Nm] | Weight
[g] | Availability | Your Price |
| 374462 | M8 | M8 | 13 | 13 | 7,2 | 8 | 11 | 10 | 25 | 13 | | |
| 568020 | M10 | M10 | 18 | 20 | 10,5 | 10 | 17 | 25 | 46 | 40 | | |
| 73734 | M12 | M12 | 18 | 20 | 10,5 | 12 | 17 | 25 | 82 | 43 | | |
| 73742 | M16 | M16 | 27 | 30 | 20,0 | 16 | 27 | 90 | 206 | 150 | | |
| 73759 | M20 | M20 | 35 | 50 | 34,5 | 20 | 41 | 165 | 407 | 486 | | |
| | | | | | | | | | | | |
More Information | Order no. | 568020 |
|---|
| Clamping screw | Without clamping bolt |
|---|
