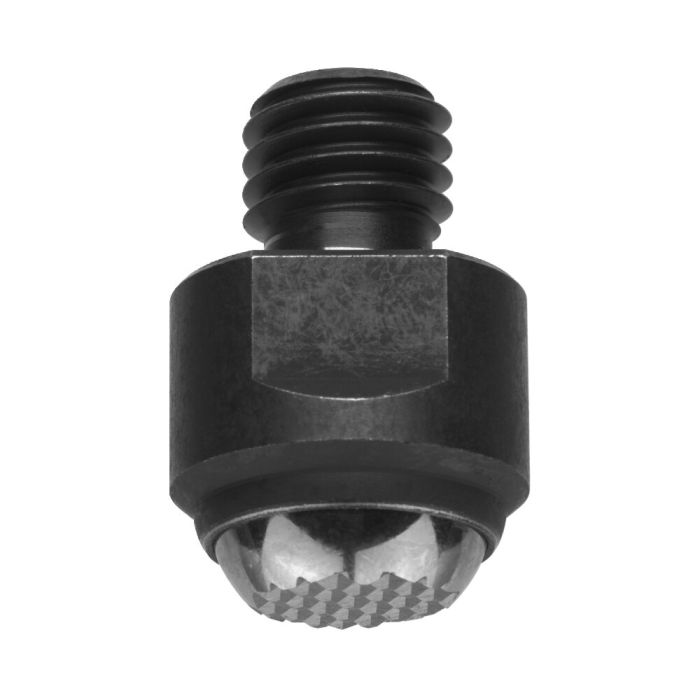

Set screw with flat-faced ball, ribbed

Thread M8, length 8 mm

Order no.

75432

Order no.	Size	G	H	dia. l	Dia. K	L	SW	Max. load static [kN]	Max. tightening torque [Nm]	Weight [g]
568021	M10	M10	18	20	10,5	10	17	25	46	40
73767	M12	M12	18	20	10,5	12	17	25	82	43
73775	M16	M16	27	30	20,0	16	27	90	206	150
73783	M20	M20	35	50	34,5	20	41	165	407	486
75432	M8	M8	13	13	7,2	8	11	10	25	13

CAD

If you are missing a download, please write to us using our contact form.

Area	Language	File name	Type	File size

For general downloads, such as catalogs and brochures, please click here.
