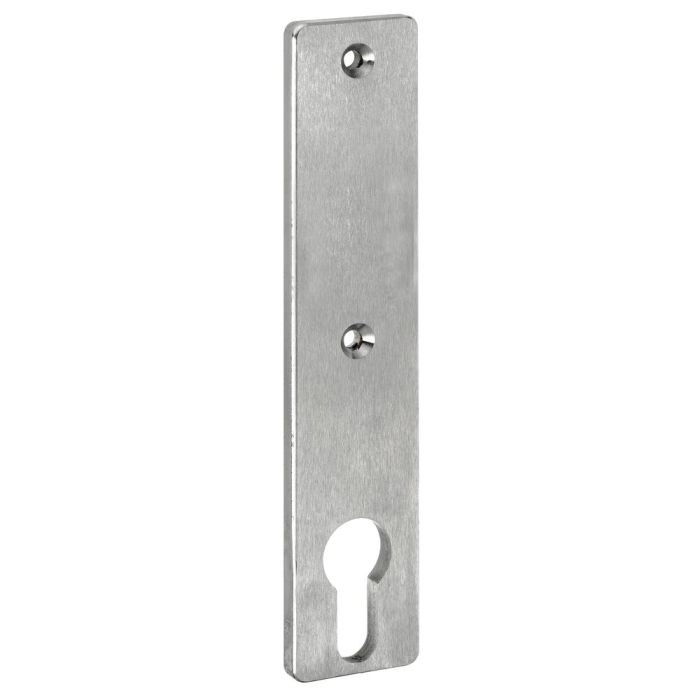

Short cylinder plate

Stainless steel, blind
Order no.
10678

Loading...

Stainless steel, angular shape.
10686 with bore for lever actuation.
10678 blind
Suitable for all cased locks.
Incl. 2 handle plates for Ø16 mm and Ø18 mm levers, 2 stainless steel screws.
Short cylinder plate with 72 mm centres.

More Information
Order no.10678
TypeShort cylinder plate
