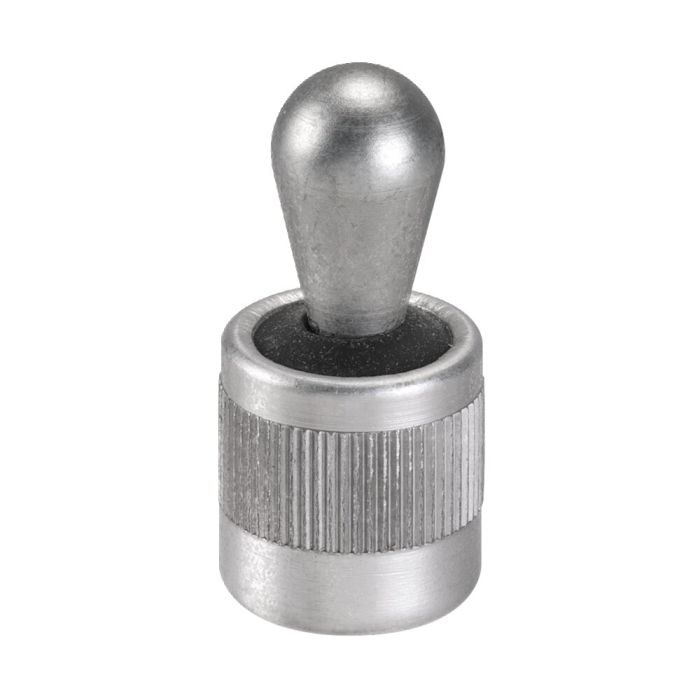

Side thrust piece, with seal ⌀ 6 mm, spring force 10 N, width thrust piece 3 mm, height total 11 mm
Order no. dia. a b ~P C D -1 ØH H8 F X Tool Weight Availability Your Price 373159 6 3 10 4 7 6 ±0,5 0,9 03 0,6
373167 6 3 20 4 7 6 ±0,5 0,9 03 0,6
373175 6 3 40 4 7 6 ±0,5 0,9 03 0,7
373183 10 5 20 6 12 10 ±0,8 1,6 05 2,7
373191 10 5 50 6 12 10 ±0,8 1,6 05 2,9
373209 10 5 100 6 12 10 ±0,8 1,6 05 2,9
373217 10 6 40 10 12 10 ±1,0 1,8 06 3,1
373225 10 6 75 10 12 10 ±1,0 1,8 06 3,6
373233 10 6 150 10 12 10 ±1,0 1,8 06 3,7
373241 12 8 50 13 14 12 ±1,3 2,6 08 3,9
373258 12 8 100 13 14 12 ±1,3 2,6 08 7,1
373266 12 8 200 13 14 12 ±1,3 2,6 08 7,3
373274 16 10 100 16 18 16 ±1,6 3,2 10 7,6
373282 16 10 200 16 18 16 ±1,6 3,2 10 15
373290 16 10 300 16 18 16 ±1,6 3,2 10 15,4
Note:
More Information Order no. 373159 Product type Side thrust piece Spring force [kN] 10
