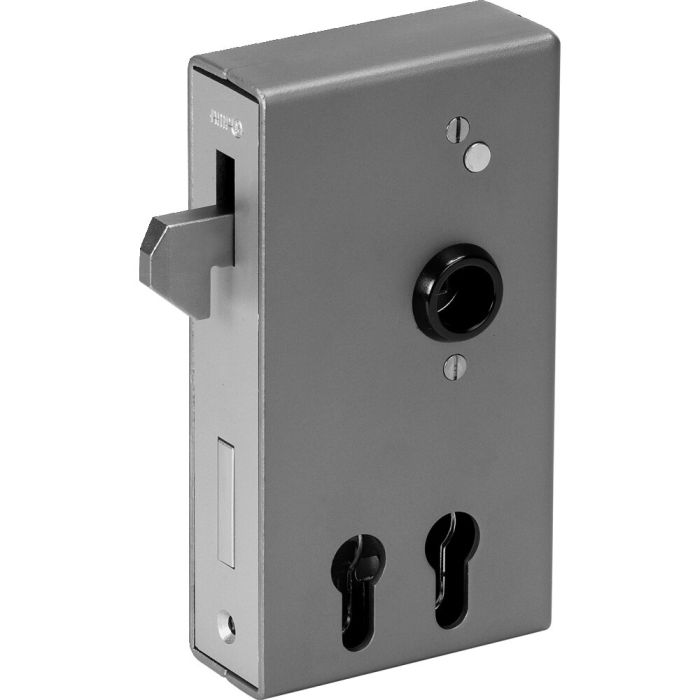

Sliding-door lock case for two profile cylinders, bare-metal
With zinc-plated lock no. 142SD, case width 40 mm
Order no.
16212
Application:
The practical solution when two people (or groups of people) require independent access: for example fire-brigade approaches or waste-container enclosures. The cased lock with two profile cylinders permits access for the fire brigade or disposal companies via general key, and can also be integrated into the normal master-key system.
Note:
- Installation of two profile cylinders that can be operated independently of one another required
- Cam position up to 45°
| Order no. | 16212 |
|---|---|
| Closure | Profile cylinder with night latch function (PZW) |
| Field of application | Sliding-door, Two-sided locking option |
| Backset [mm] | 30, 60 |
| Case width [mm] | 40 |
| Special features | Double cylinder |
