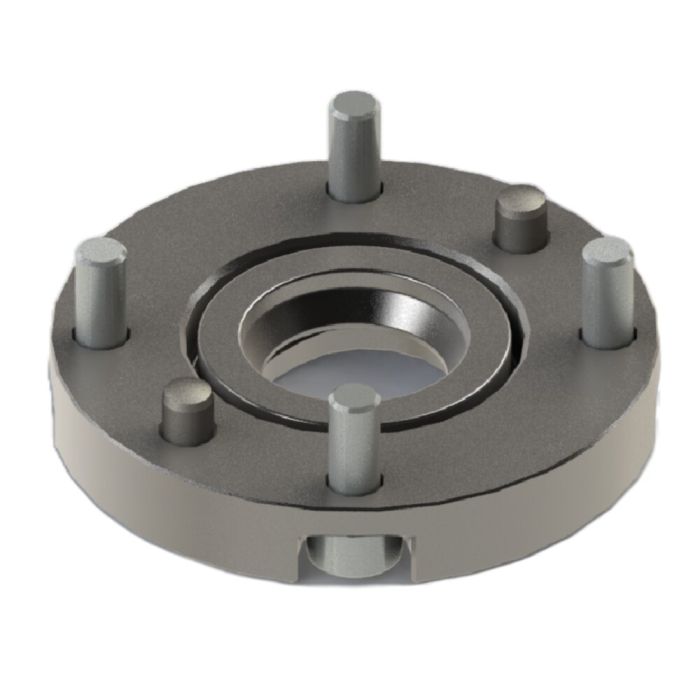

Slit clamping sleeve
Suitable for all modules of sizes 250 and 251
Order no.
571106
Application:
The slit clamping sleeve is supported by bearings allowing it to move in the X direction and is used when large distance tolerances between the clamping sleeves have to be compensated.
Order no. 571106: Suitable for all modules of sizes 250 and 251
Order no. 571107: Suitable for all modules of size 260
Order no. 571108: Suitable for all modules of size 270
Note:
The guided slit clamping sleeve can absorb lateral loads in the Y direction.
The fastening bolts and cylinder pins are supplied as standard.
On request:
- Installation drawings
| Order no. | 571106 |
|---|---|
| Product type | Clamping sleeve |
| Operating mode | Mechanical, Pneumatic |
| Size clamping module | 250/251 |
