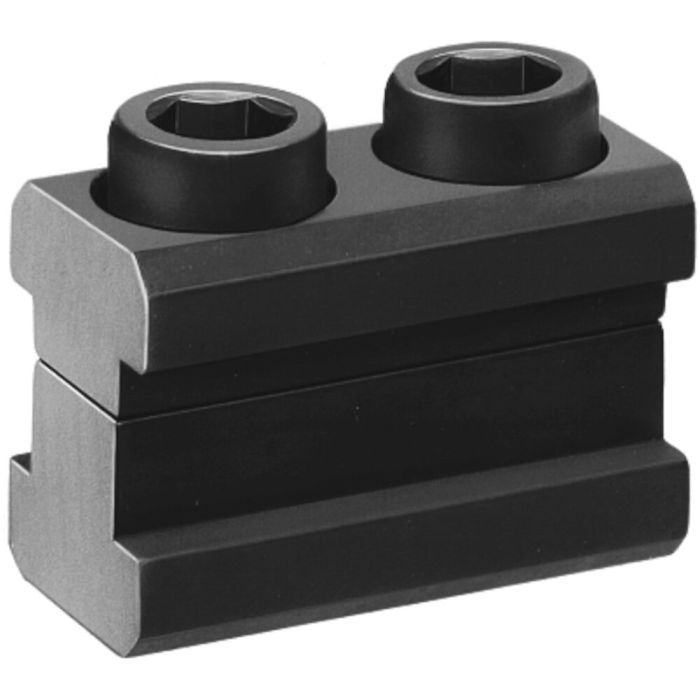

Slot stop
Slot 20 mm, width 32 mm, length 64 mm
| Order no. | Slot | A | b | D | H | k | L1 | L2 | L3 | Weight
[g] | Availability | Your Price |
| 73817 | 12 | 11,7 | 18 | M8 | 12 | 7 | 36 | 9,0 | 18 | 100 | | |
| 73825 | 14 | 13,7 | 22 | M8 | 12 | 8 | 44 | 11,0 | 22 | 140 | | |
| 73833 | 16 | 15,7 | 25 | M12 | 15 | 9 | 50 | 12,5 | 25 | 240 | | |
| 73841 | 18 | 17,7 | 28 | M12 | 16 | 10 | 56 | 14,0 | 28 | 340 | | |
| 73858 | 20 | 19,7 | 32 | M16 | 19 | 12 | 64 | 16,0 | 32 | 520 | | |
| 73866 | 22 | 21,7 | 35 | M16 | 21 | 14 | 70 | 17,5 | 35 | 720 | | |
| 73874 | 24 | 23,7 | 40 | M20 | 23 | 16 | 80 | 20,0 | 40 | 880 | | |
| 73882 | 28 | 27,7 | 44 | M20 | 24 | 18 | 88 | 22,0 | 44 | 1460 | | |
| | | | | | | | | | | | |
Application:
To be used for longitudinal or transversal function. The low overall height allows application with flat workpieces.
More Information | Order no. | 73858 |
|---|
| Product type | Stops |
|---|
| Slot [mm] | 20 |
|---|
