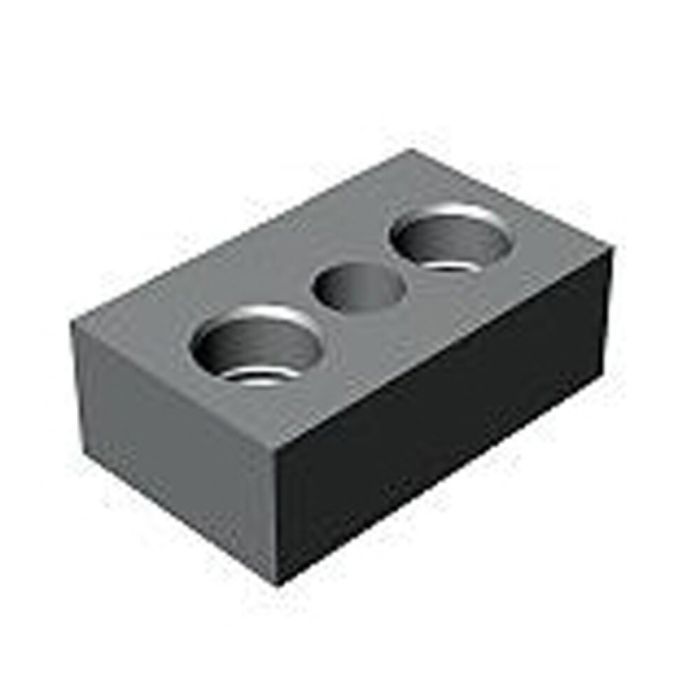

Spacer plate with positioning

Support height 25 mm, dia. drilling 16 mm, grid 40 mm

Order no.

79160

Order no.	Article no.	dia. D F7	Support height H ±0.01	R ±0.01	Weight [g]
79095	6363-16-022-1	22	30	50	920
79160	6363-12-022-1	16	25	40	430
79244	6363-12-022-3	16	50	40	950
79251	6363-16-022-3	22	60	50	1730

Order no.	b	B1	E	L	L1	dia. S
79095	53	29	13	88	19	17
79160	38	19	10	78	19	13
79244	38	19	10	78	19	13
79251	53	29	13	88	19	17
