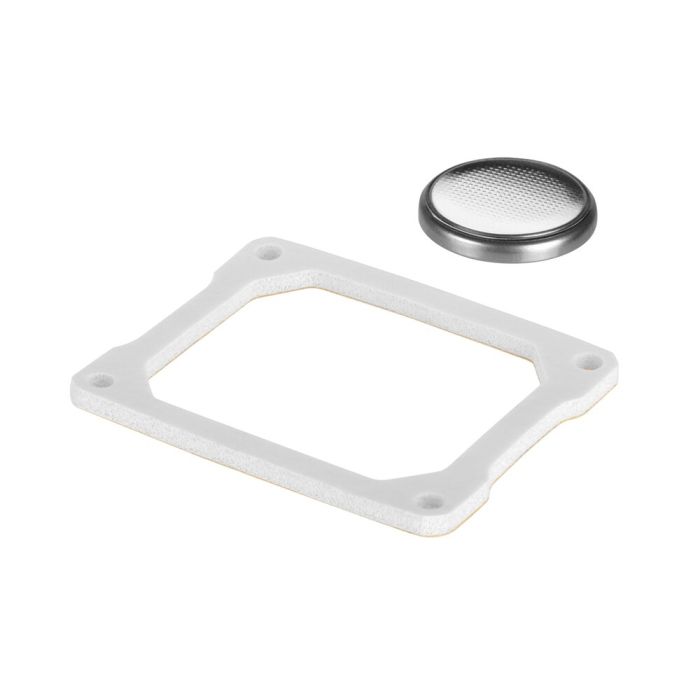

Spare battery and flat seal
1 button cell and 1 flat seal for Sender-Unit gripper switch (Order no. 560408) and Sender-Unit gripper reed (Order no. 560406)
Order no.
561746
Design:
Order no. 554860: 1 button cell and 1 flat seal for Sender-Unit (Order no. 554178) and wireless pressure switch (Order no. 554862 and 554799)
Order no. 554861: 2 button cells and 1 flat seal for longlife Sender-Unit (Order no. 554179)
Order no. 561746: 1 button cell and 1 flat seal for Sender-Unit gripper switch (Order no. 560408) and Sender-Unit gripper reed (Order no. 560406)
Application:
Spare battery for the Sender-Unit. During a battery change, the flat seal must be replaced in order to further ensure the protection class IP 67.
| Order no. | 561746 |
|---|
