| Order no. | Size | D1 | D3 | H2 | R | Packaging
unit | Weight
[g] | Availability | Your Price |
| 81737 | M8 | 8,4 | 17 | 3,2 | 12 | 100 | 2,5 | | |
| 81745 | M10 | 10,5 | 21 | 4 | 15 | 100 | 5,0 | | |
| 81752 | M12 | 13 | 24 | 4,6 | 17 | 100 | 7,0 | | |
| 81760 | M14 | 15 | 28 | 5 | 22 | 50 | 10 | | |
| 81778 | M16 | 17 | 30 | 5,3 | 22 | 100 | 12 | | |
| 81786 | M20 | 21 | 36 | 6,3 | 27 | 50 | 23 | | |
| 81794 | M24 | 25 | 44 | 8,2 | 32 | 25 | 42 | | |
| 81802 | M30 | 31 | 56 | 11,2 | 41 | - | 87 | | |
| 81810 | M36 | 37 | 68 | 14 | 50 | - | 184 | | |
| 81828 | M6 | 6,4 | 12 | 2,3 | 9 | 100 | 1,0 | | |
| 81836 | M42 | 43 | 78 | 17 | 58 | - | 297 | | |
| 81844 | M48 | 50 | 92 | 21 | 67 | - | 525 | | |
| | | | | | | | | |
More Information | Order no. | 81828 |
|---|

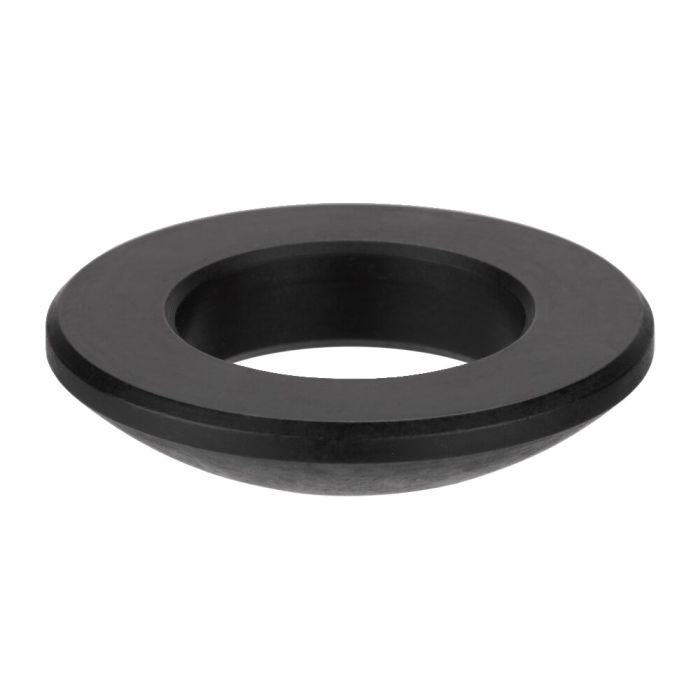

| Product type | Washers |
|---|
| Thread [M] | 6 |
|---|
