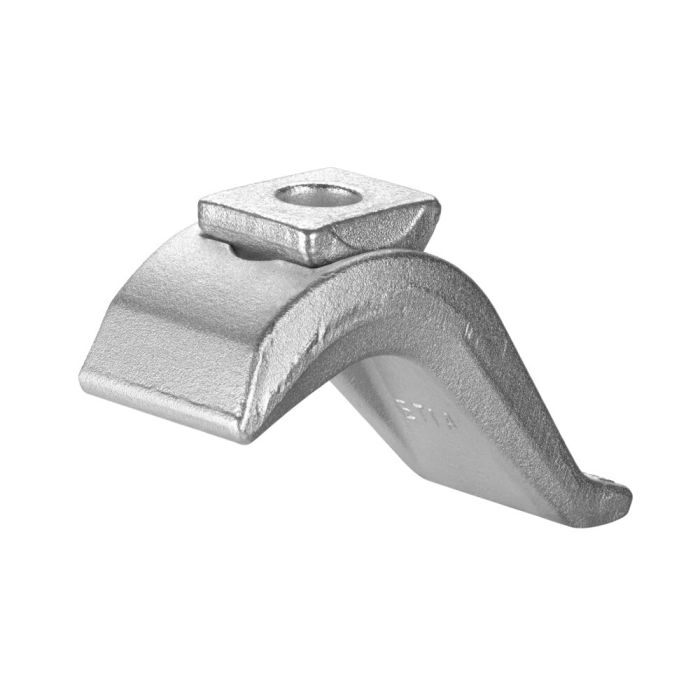

Stepless height adjustable clamp
Size 17, for clamping screw M12/M14/M16, clamping height 0-75 mm
Order no.
71522
Application:
Stepless clamp for fast coverage of several ranges of work height without additional supports. Low space requirement on machine table. Heavy-duty design and specially suitable for clamping of press- and punching tools.
Note:
Suitable fastening elements: DIN 787 clamping bolts, DIN 6340 washers and DIN 6330B hexagon nuts.
| Order no. | 71522 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 12, 14, 16 |
| Min. clamping height [mm] | 0 |
| Max. clamping height [mm] | 75 |
