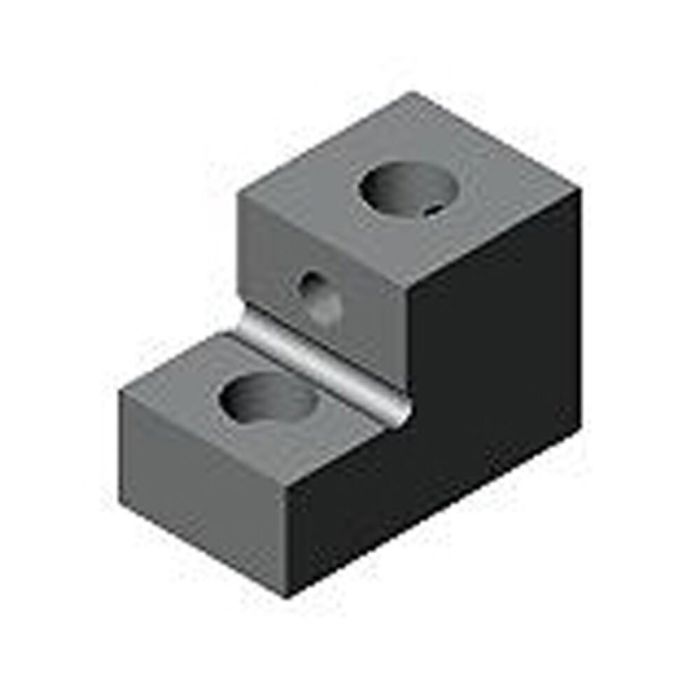

Stop element
Dist. fr. face to loc. holes 1 25 mm, dist. fr. face to loc. holes 2 50 mm, dia. drilling 22 mm, grid 50 mm
| Order no. | Article no. | Dist. fr. face to loc. holes A1 ±0.01 | Dist. fr. face to loc. holes A2 ±0.01 | dia. D F7 | R ±0.01 | Weight
[g] | Availability | Your Price |
| 88781 | 6363-12-067 | 25 | 50 | 16 | 40 | 1005 | | |
| 88799 | 6363-16-067 | 30 | 60 | 22 | 50 | 1910 | | |
| | | | | | | | |
| Order no. | b | E | F | H1 | H2 | H3 | L | L1 | L2 | m | dia. S | dia. S1 | dia. S2 |
| 88781 | 39 | 10 | 16 | 45 | 60 | 28 | 84 | 19 | 19,5 | M12 | 13 | 20 | 12,5 |
| 88799 | 48 | 13 | 22 | 60 | 80 | 38 | 99 | 19 | 24 | M16 | 17 | 26 | 16,5 |
| | | | | | | | | | | | | |
More Information | Order no. | 88799 |
|---|
