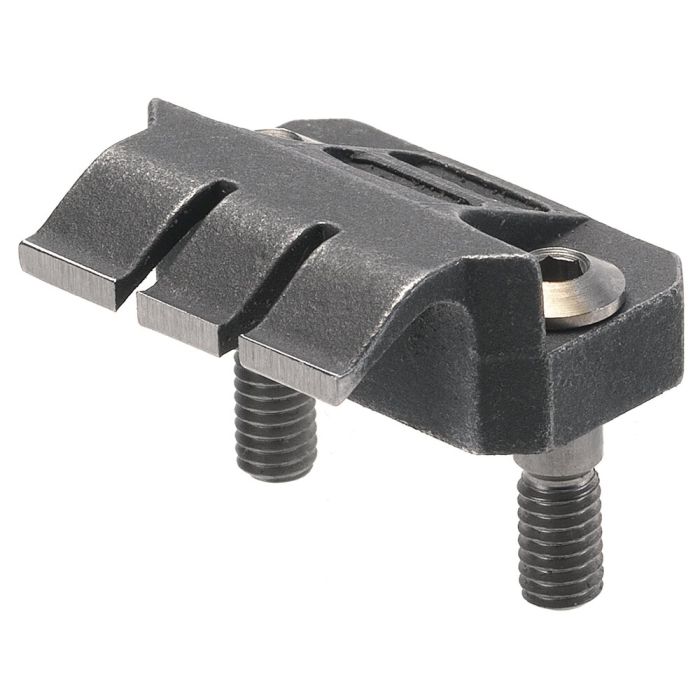

Stop, fixed
Simple stop, clamping height 2,5 mm, width 20 mm, length 22 mm
Order no.
70987
Application:
Size 1 - Single stop (1 rigid stop): Two stops are required to position a workpiece along a straight line.
Size 2 - Double stop (2 rigid stops): One stop is sufficient to position a workpiece along a straight line.
| Order no. | 70987 |
|---|---|
| Product type | Flat clamps |
