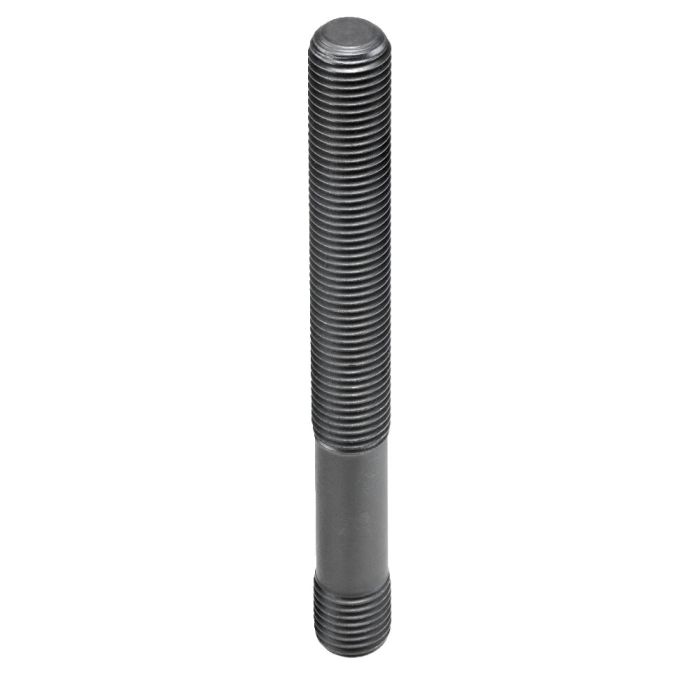

Studs for nuts and T-slots, strength class 12.9 Strength class 12.9, thread M24, length 500 mm
Order no. D x L B1 b2 Packaging Weight Availability Your Price 82123 M12x 80 15 50 50 55
82180 M16x 80 19 50 25 105
82263 M16x100 19 63 25 130
85571 M16x125 19 75 25 160
87668 M20x125 27 70 - 255
87684 M20x160 27 100 - 330
87692 M20x500 27 315 - 1020
87700 M20x200 27 125 - 410
87734 M16x160 19 100 25 218
87742 M20x250 27 160 - 510
87759 M16x200 19 125 - 280
87791 M16x250 19 160 - 325
87833 M20x315 27 190 - 640
88286 M24x160 35 100 - 470
88930 M24x200 35 125 50 580
89094 M24x250 35 160 - 730
89136 M24x315 35 200 - 920
89151 M24x400 35 250 - 1160
89177 M24x500 35 315 - 1460
89193 M12x100 15 63 25 70
89250 M12x125 15 75 25 90
89276 M12x160 15 100 25 113
Advantage: Benefits of thread rolling:
More Information Order no. 89177 Product type Studs for nuts Thread [M] 24 Length [mm] 500 Strength class 12.9
If you are missing a download, please write to us using our contact form .
Area Language File name Type File size
