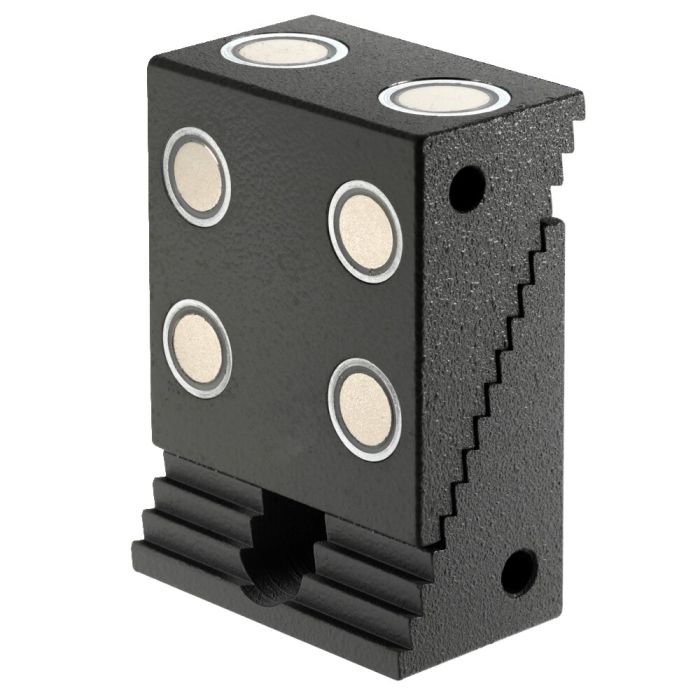

Support block with magnet
With link spring, height 37-107 mm, width 60 mm
Order no.
373969
Note:
The two parts of this AMF support block are connected by a spring for ease of handling.
Holding force 4 magnets = 380 N
Holding force 2 magnets = 280 N
| Order no. | 373969 |
|---|---|
| Min. height [mm] | 37 |
| Max. height [mm] | 107 |
| Special features | With magnet |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Step clamp Nr. 70383 Only match step blocks no. 6500E, for clamping screw metric M12/M14 and inch 1/2, length 100 mm
-
