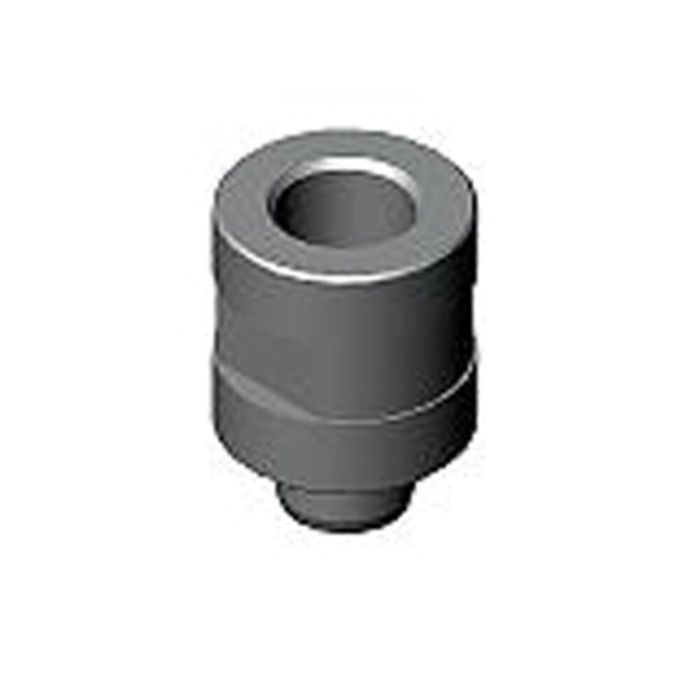

Support centring pin
Dist. fr. face to loc. holes 22 mm, support height 40 mm, dia. outside 40 mm, dia. inside 22 mm
| Order no. | Article no. | dia. D F7 | dia. D1 h11 | Dist. fr. face to loc. holes dia. D2 +0.01 / -0.005 | Support height H ±0.01 | Weight
[g] | Availability | Your Price |
| 88641 | 6363-12-057-1 | 16 | 30 | 16 | 30 | 105 | | |
| 88658 | 6363-16-057-1 | 22 | 40 | 22 | 40 | 250 | | |
| | | | | | | | |
| Order no. | E | L | m | SW | L1 | L2 |
| 88641 | 12 | 40,5 | M12 | 24 | 11 | 9 |
| 88658 | 13 | 52,5 | M16 | 32 | 14 | 13 |
| | | | | | |
More Information | Order no. | 88658 |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size | |
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Similar products
Locating-support pin Nr. 78188 Dist. fr. face to loc. holes 40 mm, support height 40 mm, dia. drilling 22 mm
