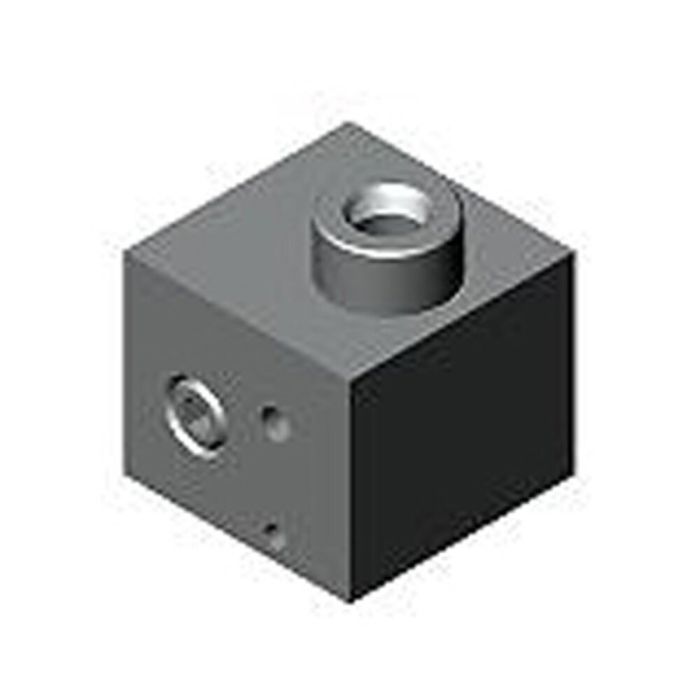

Support element
Support height 44-50 mm, max. support force 14-20 N, stroke 6 mm
Order no.
300335
Application:
The support element is used as an additional support, in modular or special fixtures, to prevent flexing and vibration of a workpiece. It enables large workpiece tolerances (castings) to be accommodated. Mounted directly under a clamping point, it prevents distortion of a workpiece. Secure positioning is ensured by a spring.
| Order no. | 300335 |
|---|
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Support pin Nr. 300442 Support height (in conjunction with supporting element no. 300335) 45-54 mm, length 15 mm
