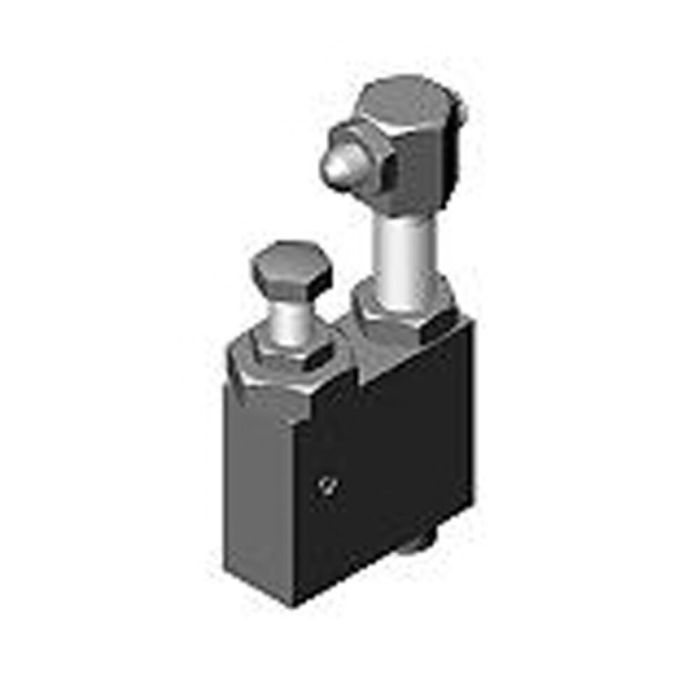

Support element with stop
Height 88-105 mm (Type 16)
| Order no. | Article no. | A x B x C | E | G | H | Weight
[g] | Availability | Your Price |
| 78410 | 7110S-12-1 | 57x25x65 | 45 | M12 | 82-95 | 900 | | |
| 78527 | 7110S-16-1 | 60x30x80 | 60 | M16 | 88-105 | 1500 | | |
| | | | | | | | |
| Order no. | H1 | I | L | m | SW1 | SW2 | SW3 |
| 78410 | 88-113 | 12,5 | 40 | M16 | 19 | 24 | 24 |
| 78527 | 95-125 | 14 | 50 | M20 | 24 | 32 | 30 |
| | | | | | | |
Note:
Accessories for clamp element No. 7110S-**-1 are No. 7110D/DM, 7110DS, 7110DK/DF, 7110DH/DI and 7110DV.
More Information | Order no. | 78527 |
|---|
| Type | 16 |
|---|
| Max. height [mm] | 105 |
|---|
| Min. height [mm] | 88 |
|---|
