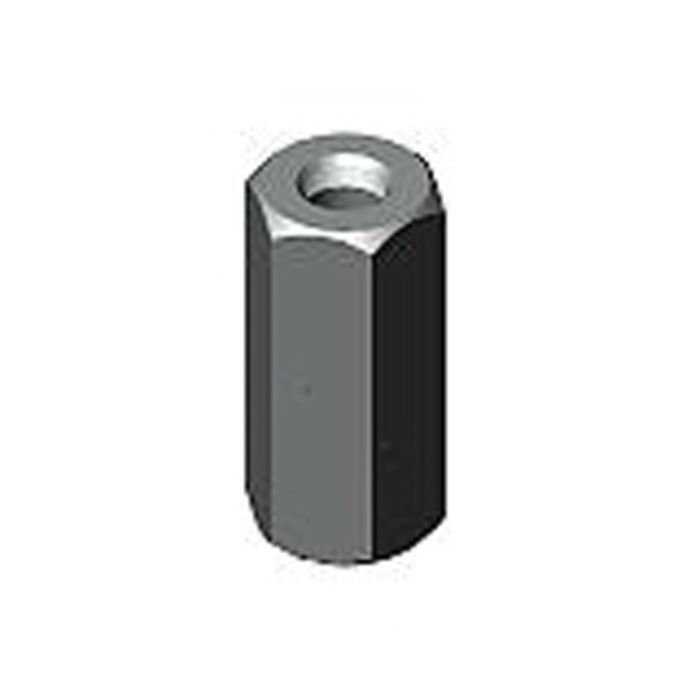

Support pin (spacer)

Support height 60 mm, dia. inside M16, key width 30 mm

Order no.

78295

Order no.	Article no.	Support height H ±0.01	m	SW	Weight [g]
78089	6363-12-009-1	25	M12	22	60
78097	6363-12-009-2	50	M12	22	122
78287	6363-16-009-1	30	M16	30	140
78295	6363-16-009-2	60	M16	30	280

More Information
Order no.	78295
