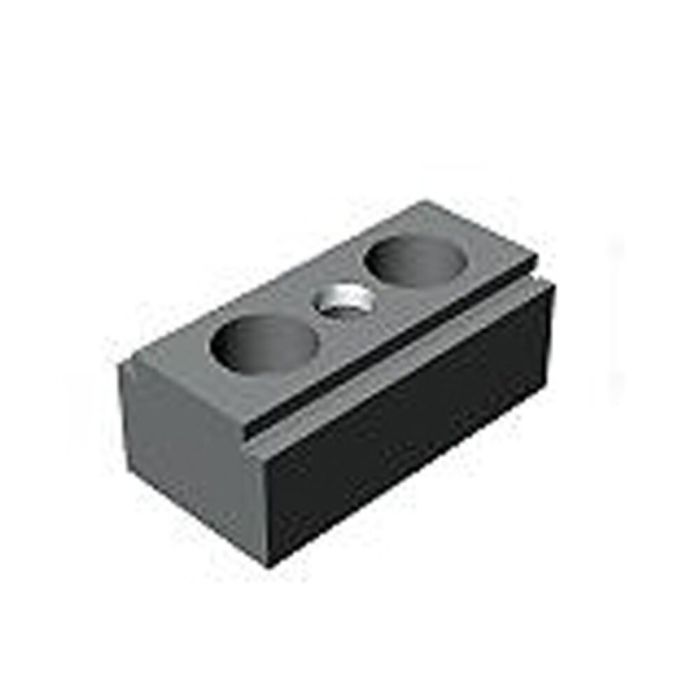

Support-stop block, double-sided

Dist. fr. face to loc. holes 30 mm, support height 30 mm, dia. drilling 16 mm, grid 40 mm, length 78 mm

Order no.

88823

Order no.	Article no.	Dist. fr. face to loc. holes A ±0.01	Dist. fr. face to loc. holes A1 ±0.01	Support height H ±0.01	Support height H1 ±0.01	dia. D F7	R ±0.01	Weight [g]
88823	6363-12-069	15	30	25	30	16	40	570
88831	6363-16-069	20	40	30	40	22	50	1170

Order no.	b	E	F	L	L1	L2	m	dia. S	dia. S1
88823	40	10	16	78	19	20	M12	13	20
88831	58	13	22	88	19	29	M16	17	26
