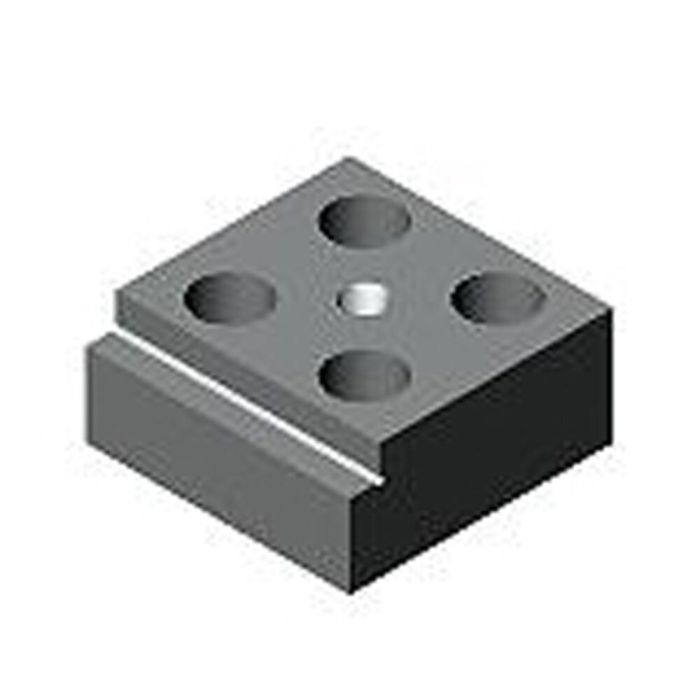

Support-stop block, single-sided, wide

Dist. fr. face to loc. holes 15 mm, support height 35 mm, dia. drilling 16 mm, grid 40 mm

Order no.

88849

Order no.	Article no.	Dist. fr. face to loc. holes A ±0.01	Dist. fr. face to loc. holes I ±0.01	Support height H ±0.01	Support height H1 ±0.01	dia. D F7	R ±0.01	Weight [g]
88849	6363-12-070	15	70	25	35	16	40	950
88856	6363-16-070	20	90	30	40	22	50	1810

Order no.	b	E	F	m	dia. S	dia. S1	L1	L2
88849	79	10	16	M12	13	20	19,5	24
88856	99	13	22	M16	17	26	24,5	29

More Information
Order no.	88849

CAD

If you are missing a download, please write to us using our contact form.

Area	Language	File name	Type	File size

For general downloads, such as catalogs and brochures, please click here.

Similar products

Support-stop block, single-sided Nr. 88807 Dist. fr. face to loc. holes 15 mm, support height 30 mm, dia. drilling 16 mm, grid 40 mm, length 78 mm
