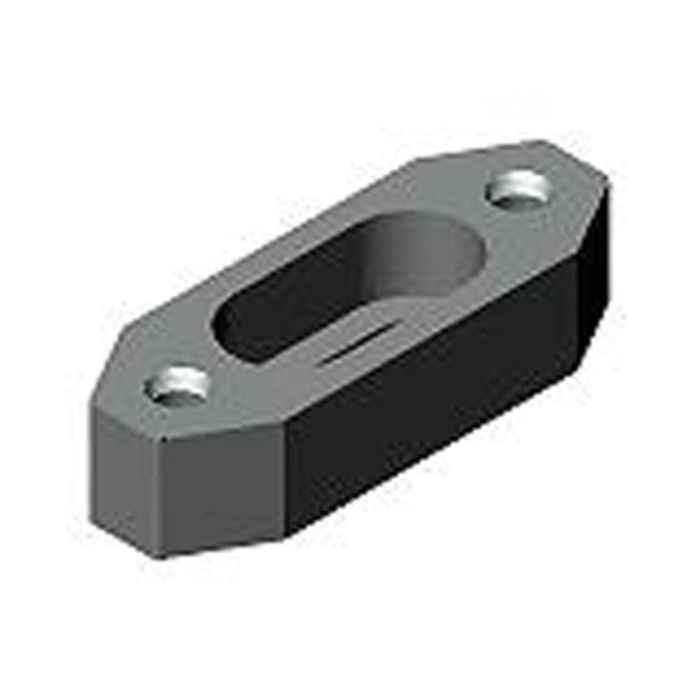

Support strip
Support height 25 mm, dia. drilling M12, length 110 mm, width 39 mm
| Order no. | Article no. | Support height H ±0.01 | Weight
[g] | Availability | Your Price |
| 300269 | 6363-12-037-2 | 25 | 480 | | |
| 300285 | 6363-16-037-2 | 30 | 900 | | |
| | | | | |
| Order no. | b | C | F | L | L1 | L2 | L3 | m | S | S1 |
| 300269 | 39 | 14 | 7 | 110 | 14 | 26 | 30 | M12 | 12,5 | 26 |
| 300285 | 47 | 20 | 7 | 140 | 17 | 34 | 38 | M16 | 17,0 | 32 |
| | | | | | | | | | |
More Information | Order no. | 300269 |
|---|
