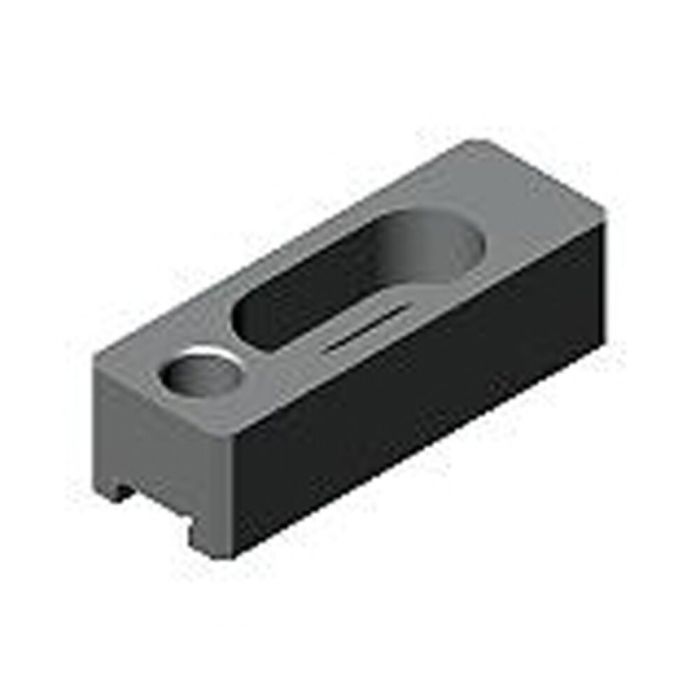

Support strip with slot

Support height 40 mm, dia. drilling 22 mm, slot 24 mm, length 140 mm, width 49 mm

Order no.

300020

Order no.	Article no.	Support height H ±0.01	dia. D F7	N H7	Weight [g]
300012	6363-12-026-2	30	16	20	640
300020	6363-16-026-2	40	22	24	1400
300210	6363-12-026-3	30	16	20	700
300236	6363-16-026-3	40	22	24	1600

Order no.	b	C	E	E1	F	L	L1	L2	L3	m	S	S1
300012	39	3	12	6	12	110	14	26	35	M12	12,5	26
300020	49	3	13	8	17	140	19	34	42	M16	17,0	32
300210	39	3	12	6	12	140	14	26	80	M12	12,5	26
300236	49	3	13	8	17	178	19	34	100	M16	17,0	32

Note:
Always attach long support strip 6363-**-3 with two screws.
