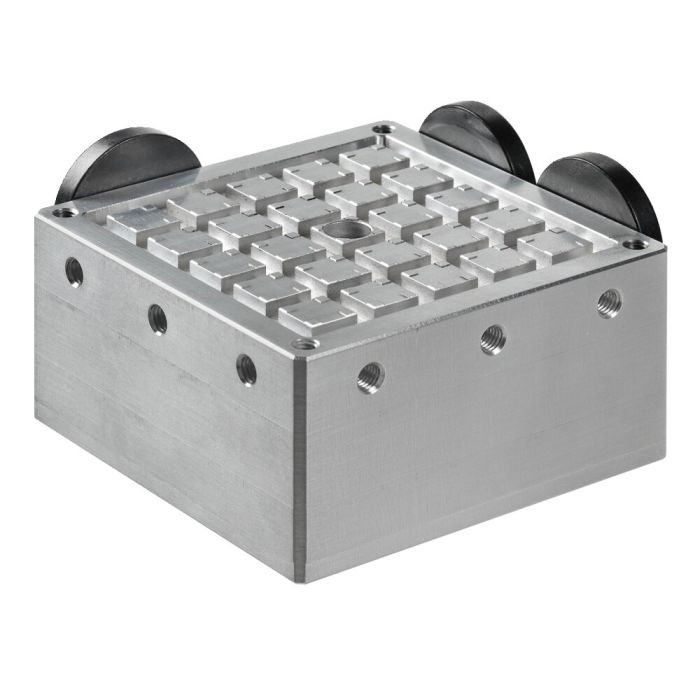

Surface-mounted block
78 x 78 mm, from aluminium, grid 12.5 x 12.5 mm
Order no.
375626
Design:
The surface-mounted block has grooves and a suction point on its upper side. The grid spacing is 12.5 mm. The field size is individually defined by inserting the sealing cord. The surface-mounted block is placed directly over a suction point on the vacuum clamping plate 7800P/7800BV. The underside is equipped with a sealing cord Ø 2.0 mm.
Application:
The use of surface-mounted blocks allows openings for finishing. Workpieces can be through-bored without the vacuum clamping plate or the component itself being damaged.
Note:
Please order sealing cord Ø 4.0 mm separately (Order no. 374512).
| Order no. | 375626 |
|---|
