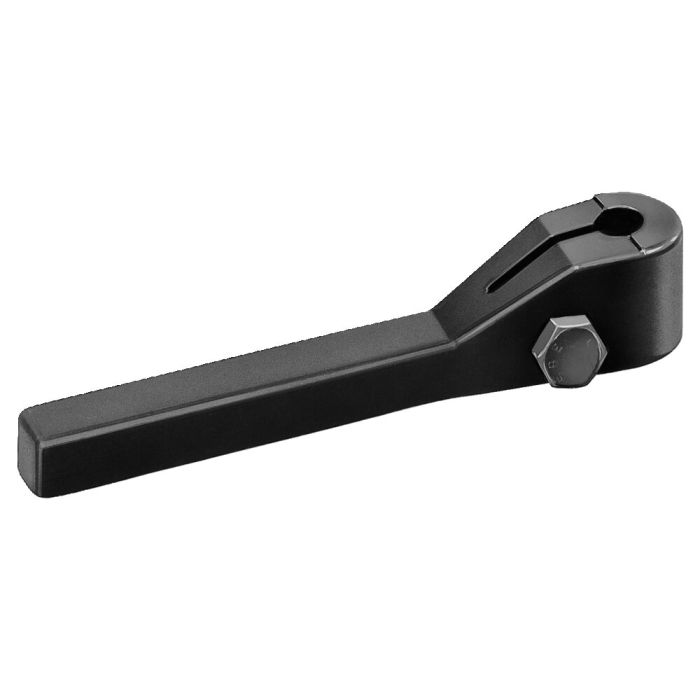

Swing Clamp Arm, long
For sizes 6951xx-11-xx, 6941KP-05-xx
Order no.
69260
Design:
Tempered and blued steel.
Application:
For all swing clamps
order no. 69229 for sizes 6951xx-02-xx, 6952EP-02-xx
order no. 69245 for sizes 6951xx-05-xx, 6952CP-06-xx, 6941KP-03-xx
order no. 69260 for sizes 6951xx-11-xx, 6941KP-05-xx
Clamp arm can be shortened for your application.
Note:
Clamping pressure, flow volume and clamping arm weight must be observed. Special versions available on request.
| Order no. | 69260 |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Swing Clamp, thread-flange-mounting Nr. 68460 Max. clamping force 11 kN, max. stroke 29,5 mm, double acting, right-pivoting
- Swing clamp, top-flange-mounting, precision design Nr. 327924 Max. clamping force 11,6 kN, max. stroke 29,5 mm, double acting, right-pivoting
- Swing clamp, base-flange-mounting, precision design Nr. 327973 Max. clamping force 11,6 kN, max. stroke 29,5 mm, double acting, right-pivoting
- Swing clamp, top-flange-mounting Nr. 556965 Max. clamping force 5,5 kN, max. piston force 6,8 kN, stroke 13,7 mm, left-pivoting
