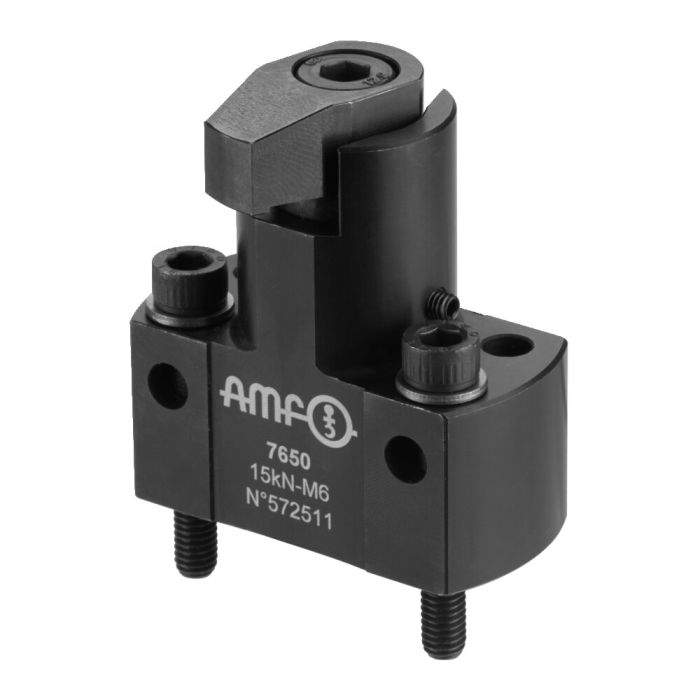

Swing clamp, mechanical

Application:
The swing clamp can be positioned vertically or horizontally and fastened onto the device plate with two fastening bolts of strength 10.9. The clamp arm is clamped with the actuation bolt of strength 12.9.

Advantage:
- Compact design
- Swivels right and left in a clamp
- Swivel angle 180°
- Safety-relevant stroke limitation of the clamp arm through integrated securing
- High tensioning force ensures secure fixing even under high loads

Note:
- The maximum load may differ depending on the condition of the attaching threads of the screws (lubrication).
- When using the clamping element on device plates, the tensile strength of the device plate must be at least 900 N/mm².
- To reduce wear to the fastening and actuation bolt, we recommend using AMF screw compound No. 6339. It possesses a synergistic combination of highly-effective solid lubricants and is heat-resistant.

On request:
Other sizes.
