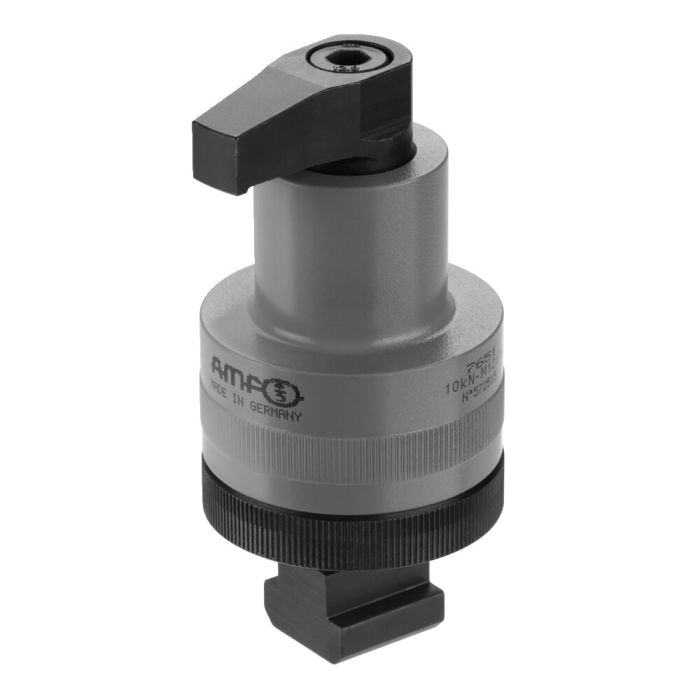

Swing clamp, mechanical, modular

Application:
The swing clamp can be positioned vertically or horizontally and fastened onto device plates and T-slot tables. The clamp arm is clamped with the actuation bolt of strength 12.9.

Advantage:
- Compact, modular design
- Use of the AMF spacer elements 6400Z, with a maximum installation height of 50 mm
- Use of the AMF base elements 6400FB M12 and M16 <br>- Swivel angle 360°
- Safety-relevant stroke limitation of the clamp arm through integrated securing
- High clamping force ensures secure fixing even under high loads

Note:
- The maximum load may differ depending on the condition of the attaching threads of the screws (lubrication).
- When using the clamping element on device plates, the tensile strength of the device plate must be at least 900 N/mm².
- To reduce wear to the fastening and actuation bolt, we recommend using AMF screw compound No. 6339. It possesses a synergistic combination of highly-effective solid lubricants and is heat-resistant. The swing clamp can be positioned vertically or horizontally and fastened onto the device plate with two fastening bolts of strength 10.9.

On request:
Other sizes.
