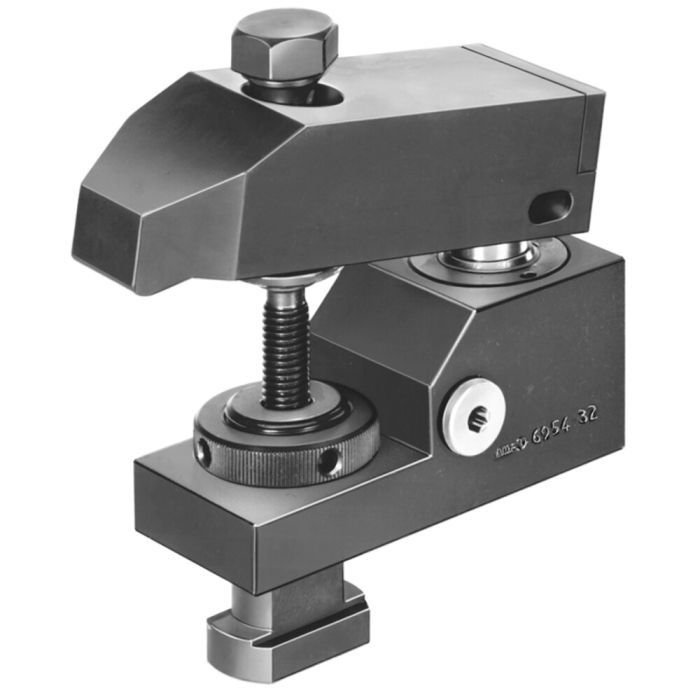

Swivel Clamping Strap, hydraulic clamping, mechanic unclamping
Max. operating pressure 250 bar, max. clamping force 30 kN, stroke, 0-5 mm, clamping height, 40-80 mm, slot 22 mm
Order no.
65490
Design:
Block cylinder housing from steel, burnished. Housing and clamping bolt tempered. Piston rod case hardened and ground. The fastening screws are included in the supply scope resistance 12.9.
Application:
Wedge clamps are used for clamping the tools on presses and injection moulding machines. The clamping bolt clamps at a 20° diagonal to the tool, which results in a friction connection.
Note:
The maximum permitted load per clamp must not be exceeded. The clamping force acts vertically on the clamping point which applies very low sliding forces to the tool.
| Order no. | 65490 |
|---|---|
| Product type | Clamping elements |
| Max. clamping force [kN] | 30 |
