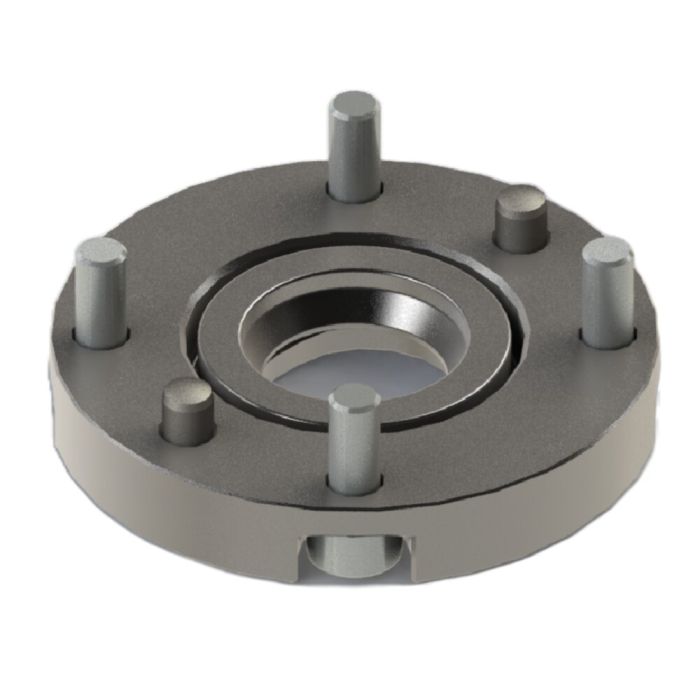

Sword clamping sleeve
Suitable for all modules of sizes 250 and 251
| Order no. | Size | X counterbalance | dia. D
| ØDH | dia. B1 | dia. B2 | H | k | ØR1 | R2 | S | Weight
[g] | Availability | Your Price |
| 571106 | 250 | +/- 0,75 | 35 | 10,70 | 3,4 | 3 | 5,45 | 10,65 | 29 | 27 | 0,75 | 34 | | |
| 571107 | 260 | +/- 0,75 | 35 | 12,05 | 3,4 | 3 | 7,80 | 12,05 | 29 | 27 | 0,75 | 45 | | |
| 571108 | 270 | +/- 0,75 | 53 | 20,05 | 4,5 | 4 | 13,90 | 20,05 | 45 | 43 | 0,75 | 189 | | |
| | | | | | | | | | | | | | |
More Information | Order no. | 571106 |
|---|
| Product type | Clamping sleeve |
|---|
| Operating mode | Mechanical, Pneumatic |
|---|
| Size clamping module | 250/251 |
|---|
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size | |
