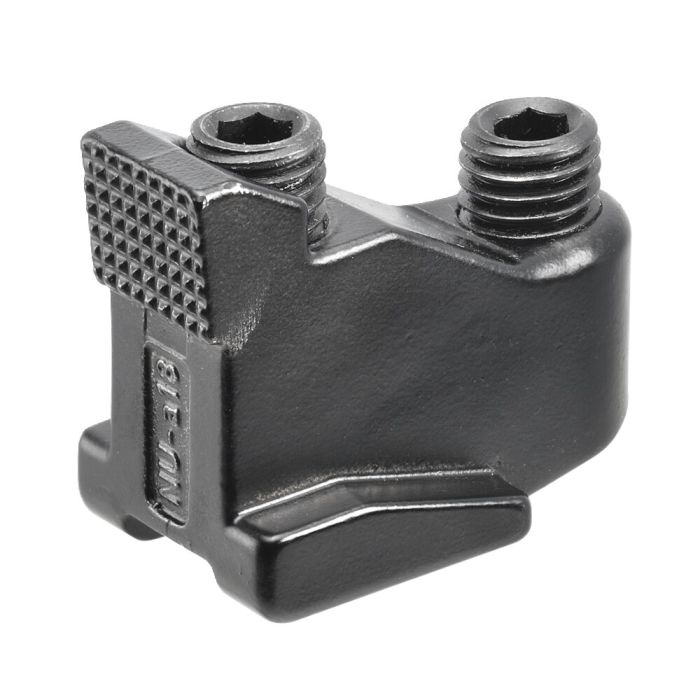

T-slot clamp
Application:
1. Slide T-slot clamp into T-slot of the machine table.
2. Position on workpiece.
3. Secure fastening bolt for machine table.
4. Actuating the clamping bolt clamps the workpiece.
Note:
- To reduce the wear on the fastening bolt, we recommend using AMF screw compound 6339. It possesses a synergistic combination of highly-effective solid lubricants and is heat-resistant and does not wash out.
- Use the associated AMF fastening bolt 6495S.
Advantage:
- For clamping of very thin workpieces
- Lateral clamping of workpieces to completely finish surfaces without interference contours
- Can be used for horizontal and vertical applications.
| Order no. | 374140 |
|---|---|
| Product type | T-slot clamps |
| Slot [mm] | 14 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Flat clamp Nr. 374157 Slot 14 mm, max. clamping height 25 mm, max. clamping force vertical 15 kN, max. pull down force 7,5 kN
