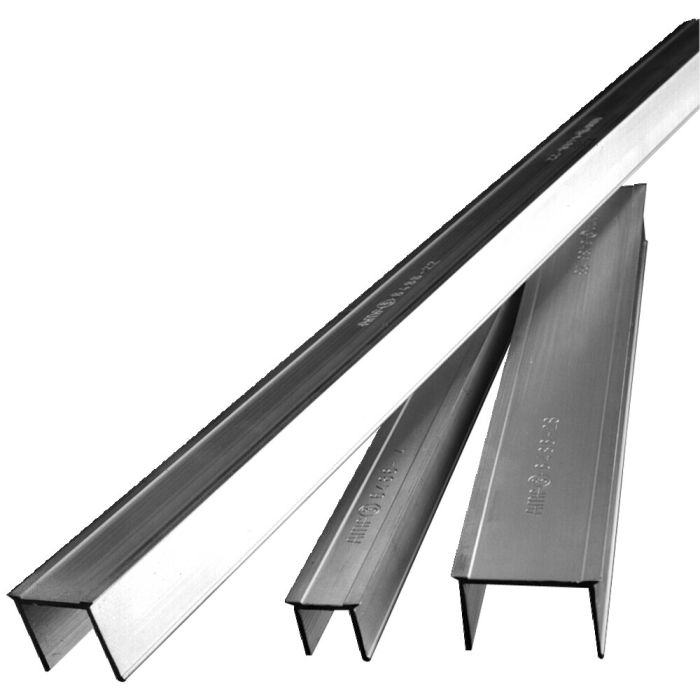

T-slot cover

Slot 12 mm, length 1000 mm

Order no.

71449

Product variants

Order no.	Size	Slot	A	b	H	L	Weight [g]
564437	42x1000	42	42,7	43,4	30,0	1000	367
571087	48x1000	48	48,7	50	30	1000	395
71449	12x1000	12	12,0	13,0	10,5	1000	88
71456	14x1000	14	14,0	15,5	11,5	1000	100
71464	16x1000	16	16,0	17,5	14,0	1000	120
71472	18x1000	18	18,0	19,5	15,0	1000	135
71787	24x1000	24	24,5	25,5	20,0	1000	170
71928	20x1000	20	20,5	21,5	16,5	1000	150
71936	22x1000	22	22,5	23,5	18,0	1000	165
71944	28x1000	28	28,5	29,5	22,0	1000	200
71951	36x1000	36	36,5	38,0	22,0	1000	220

Details

Advantage:
The thorough subsequent cleaning of the slot on the machine table is no longer required. Always cover free slots by using the original AMF-T-slot cover before starting with machining. The T-slot covers can easily be removed after machining.

Technical specifications

More Information
Order no.	71449
Product type	T-slot cover
Slot [mm]	12

CAD

Downloads

Pimcore content from synoa_downloadsnk_downloads_tab_top

Area	Language	File name	Type	File size

Pimcore content from synoa_downloadsnk_downloads_tab_bottom
