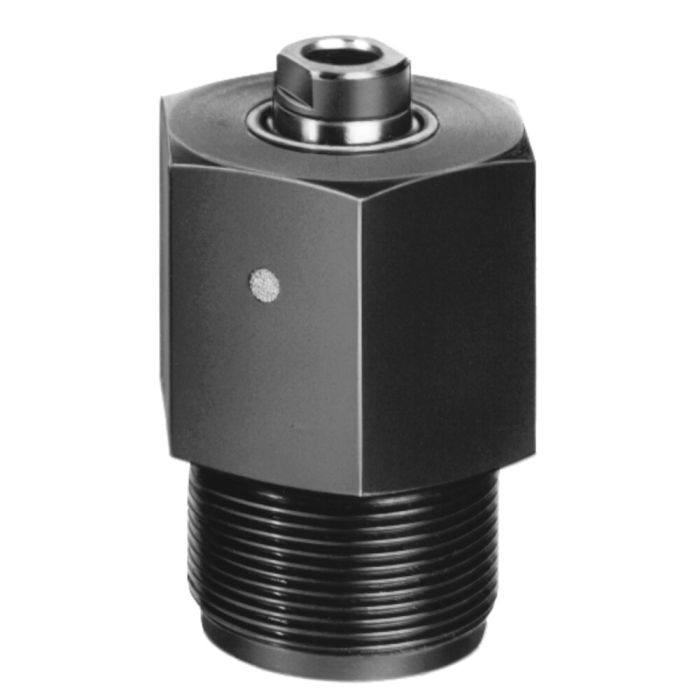

Threaded Cylinder, piston rod with internal thread
Design:
Cylinder barrel from steel, hardened and burnished. Piston and piston rod case hardened and ground. Piston rod spherical or with internal thread. Wiper at piston rod. Return spring from stainless steel. Oil supply via oil channel in fixture body.
Application:
Threaded cylinders are designed for space saving installation at fixtures. Universal clamping cylinder for clamping, pushing, locking and positioning.
Features:
Small dimensions, can be installed closely spaced side-by-side.
Note:
The cylinders must not be loaded in retracted position. The cylinders must be protected against direct access of lubricants and coolant. The system has to be completely vented during installation.
| Order no. | 60012 |
|---|---|
| Max. clamping force [kN] | 10 |
| Max. operating pressure [bar] | 500 |
| Type of actuation | Single acting |
| Stroke [mm] | 10 |
