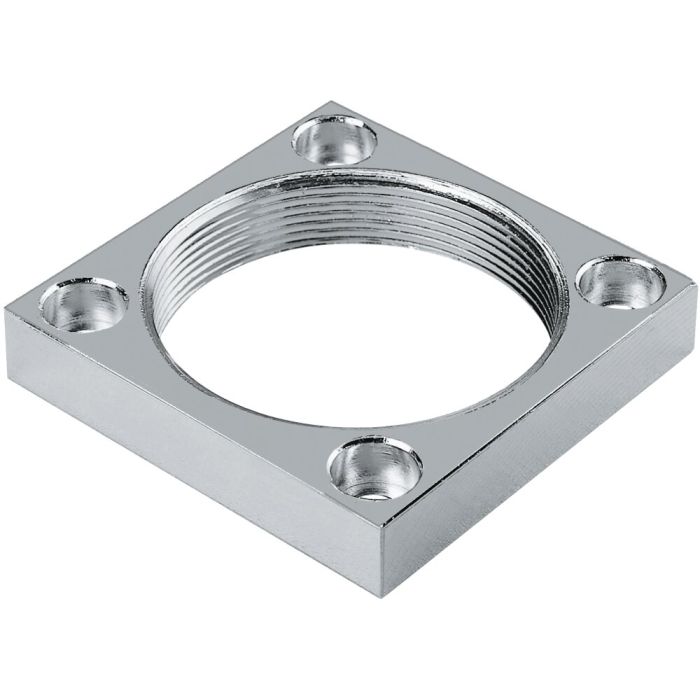

Threaded flange
Size 16, thread M30x1,5
Order no.
560066
Note:
The mounting holes in the flange are the same as in pneumatic clamp flange no. 6829K and 6829V.
Advantage:
Avoids cutting a large thread in the fixture.
| Order no. | 560066 |
|---|---|
| Product type | Swing clamp |
| Größe Schnellspanner | 16 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Swing clamp, pneumatic, flange-mounting version Nr. 560011 Size 16, max. clamping force 0,06 kN, right swinging
- Swing clamp, pneumatic, screw-in version Nr. 560063 Size 16, max. clamping force 0,06 kN, right swinging
