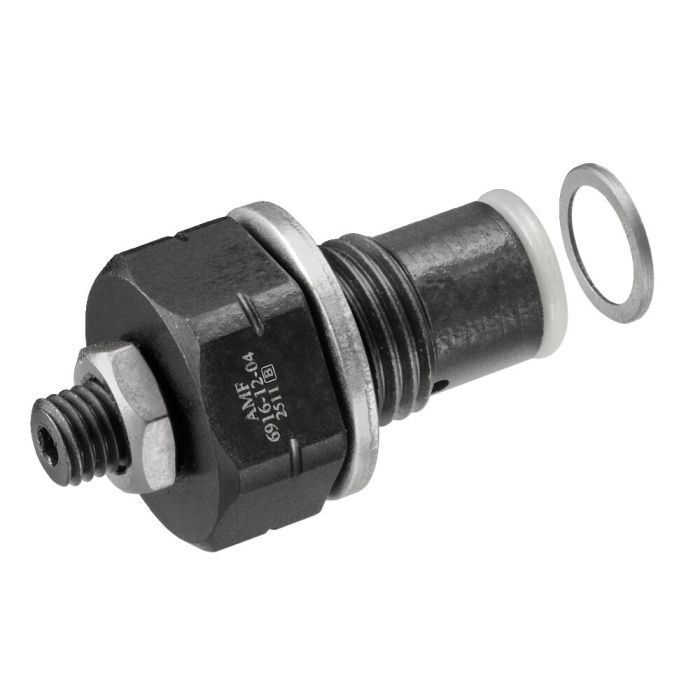

Throttle/Check Valve
Design:
Housing made of steel, hardened and blued. Compact size.
Application:
For single and double-acting loads. The traversing speed can be set by controlling the flow.
Note:
The screw-in throttle check valve is screwed into the installation bore. The upstream pressure relief valve in the hydraulic control guarantees to drain the surplus volume.
The throttle check valves should preferably be used for feed control.
Return flow control poses the risk of excess pressure. The throttle/check valve can be screwed directly into threaded connection for the swing clamp top flange and base flange types 6951KP, 6951FP, 6941KP and link clamp 6942KK, and with support elements for flange design 6964H and 6964HS.
| Order no. | 326611 |
|---|---|
| Product type | Throttle/Check valve |
| Max. operating pressure [bar] | 350 |
| Oil port | Screw-in thread |
| Volume flow [l/min] | 5.7 |
