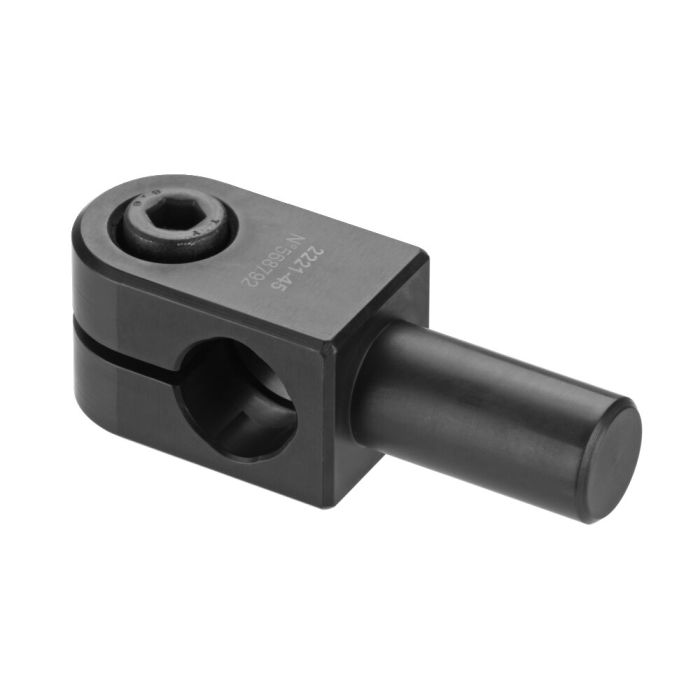

Transverse axis
For attaching and clamping on axes and bolts, length 103.5 mm, diameter 16 mm
Order no.
568793
Application:
Transverse axes for attaching and clamping on all axes and bolts as well as for holding an extremely wide range of system elements.
Features:
- Hardened and burnished transverse axis made of wear-resistant case-hardened steel
- Continuous mounting of system elements in all axes
- When unclamped, the transverse axis remains self-locking in position
Note:
Observe tightening torque.
| Order no. | 568793 |
|---|---|
| Product type | Querachsen |
