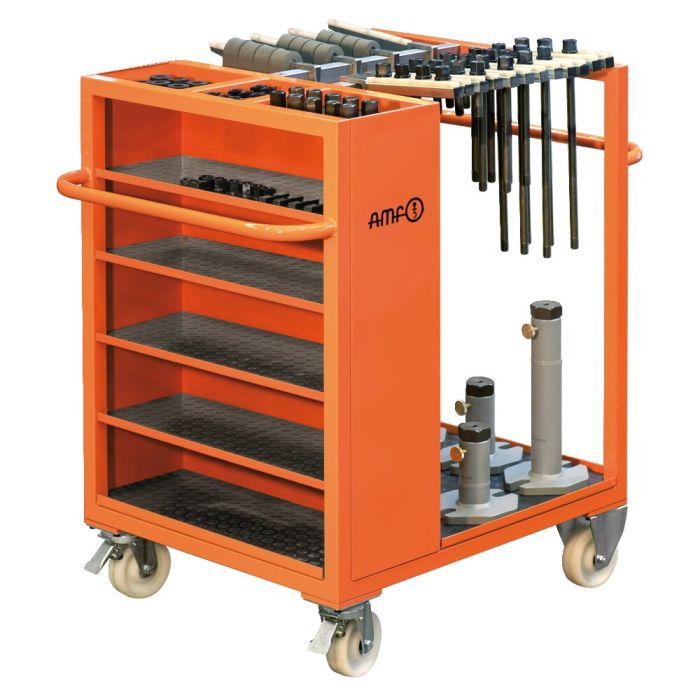

Trolley for clamping equipment with basic set of clamping equipment
Design:
Order no.: 72520 (size M16)
- DIN 6379 M16x... (6 x 125 / 6 x 200 / 6 x 315 / 6 x 500)
- DIN 6331-M16 (30x)
- DIN 6340-M16 (30x)
- DIN 6314-18x160 (4x)
- DIN 6315B-18x... (4 x 160 / 4 x 200 / 4 x 250)
- No. 6334-M16 (10x)
- No. 6435S-... (4 x 300 / 4x460)
- No. 6400-... (4x100 / 4x210)
- No. 508L-M16x18 (10x)
- No. 510-M16x18 (10x)
Order no.: 73270 (size M20)
- DIN 6379 M20x... (6 x 125 / 6 x 200 / 6 x 315 / 6 x 500)
- DIN 6331-M20 (30x)
- DIN 6340-M20 (30x)
- DIN 6314-22x200 (4x)
- DIN 6315B-22x....(4 x 315 / 4 x 200 / 4 x 500)
- No. 6334-M20 (10x)
- No. 6435S-..... (4 x 300 / 4 x 460)
- No. 508L-M20x24 (10x)
- No. 510-M20x24 (10x)
Order no.: 74674 ( size M24 )
- DIN 6379 M24x... (6 x 125 / 6 x 200 / 6 x 315 / 6 x 500)
- DIN 6331-M24 (30x)
- DIN 6340-M24 (30x)
- DIN 6314-26x250 (4x)
- DIN 6315B-26x... (4 x 200 / 4 x 315 / 4 x 500)
- No. 6334-M24 (10x)
- No. 6435S-... (4 x 460 / 4 x 750)
- No. 508L-M24x28 (10x)
- No. 510-M24x28 (10x)
Order no.: 74880 ( size M30 )
- DIN 6379 M30x... (6 x 125 / 6 x 200 / 6 x 315 / 6 x 500 / 6 x 700 / 6 x 1000)
- DIN 6331-M30 (30x)
- DIN 6340-M30 (30x)
- DIN 6314-33x315 (4x)
- DIN 6315B-33x... (4 x 315 / 4 x 400 / 4 x 600)
- No. 6334-M30 (10x)
- No. 6435S-... (4 x 460 / 4 x 750 / 4 x 1250)
- No. 508L-M30x36 (10x)
- No. 510-M30x36 (10x)
Note:
- Individual selection of clamping equipment M20 - M42 available on request
- always available from our works
- over 1000 standard individual elements to DIN.
| Order no. | 72520 |
|---|---|
| Product type | Trolley |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Trolley for clamping equipment Nr. 74252 Without clamping equipment and without holders, max. load 400 kg, dimensions 123x80x126 cm
