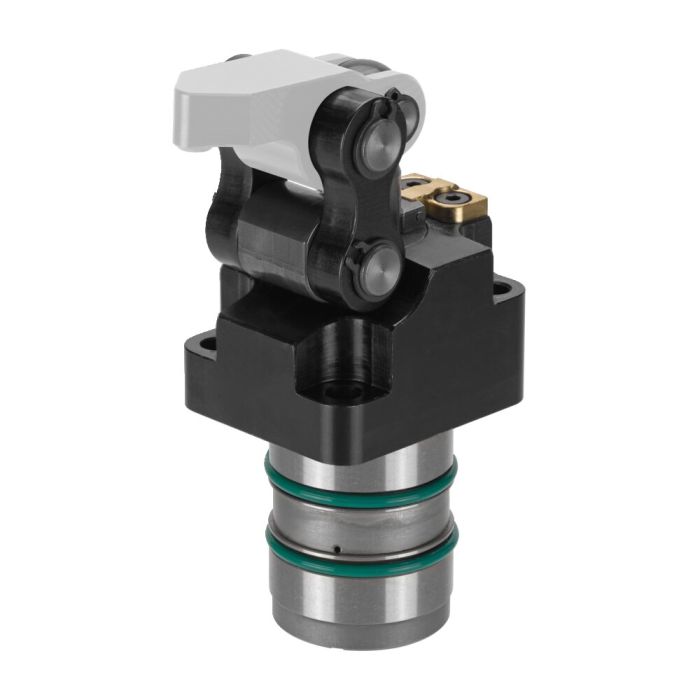

Vertical clamp with linear stroke

Max. operating pressure 250 bar, max. clamping force 2,8 kN, stroke 5 mm, double acting

Order no.

561039

Order no.	Article no.	Clamping force at 250 bar Sp* [kN]	Clamping stroke H [mm]	Vol. Sp [cm³]	Eff. piston area Sp [cm²]	Md [Nm]	Q max. * [l/min]	Weight [g]
556978	6958C-07-1	8,3	7	10,83	9,55	15,0	1,5	1200
561039	6958C-03-1	2,8	5	4,12	4,4	13,0	0,5	486
561040	6958C-04-1	5,0	6	6,82	6,82	13,0	0,9	744

Design:
Hardened, tempered and burnished steel.

Application:
For vertical clamp with linear stroke 6958C.

Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.

CAD

Pimcore content from synoa_downloadsnk_downloads_tab_top

Area	Language	File name	Type	File size

Pimcore content from synoa_downloadsnk_downloads_tab_bottom

Order no.	A°	A1	b	C	ØD f7	dia. E	F -0.05	ØG f7	H	H1	H2	H3	H4	H5	H6	k	L	m	N	P	R	S	T	t1	V	V1	V2	W	OR-1 O-ring Order No.	dia. D H8	ØG H7	ØG1	ØG2	H9	H10 ±0.1	J x depth	F +0.05	X	Z
556978	53	4,0	18	48	40	8,4	7	48	7	93,5	66,75	75,0	44,5	29,5	68,0	36	62	24,5	32,5	20	21,5	56	10	15,9	40,0	26,0	25,0	40	555939	40	48	48,6	44	21,0	6	M8 x 15	7	18,0	42,0
561039	52	0,5	12	35	29	6,4	7	33	6	80,0	54,30	63,3	36,0	27,5	57,3	29	42	17,4	22,5	15	14,4	39	10	18,0	28,5	17,6	16,6	33	564372	29	33	34,0	31	18,5	4	M6 x 15	7	16,5	33,5
561040	56	3,4	15	40	36	6,4	7	40	6	86,0	58,30	68,3	41,5	27,5	62,3	34	51	21,5	27,5	18	17,5	45	10	17,1	33,0	21,4	20,2	38	564371	36	40	40,8	38	18,5	4	M6 x 15	7	16,5	39,0
