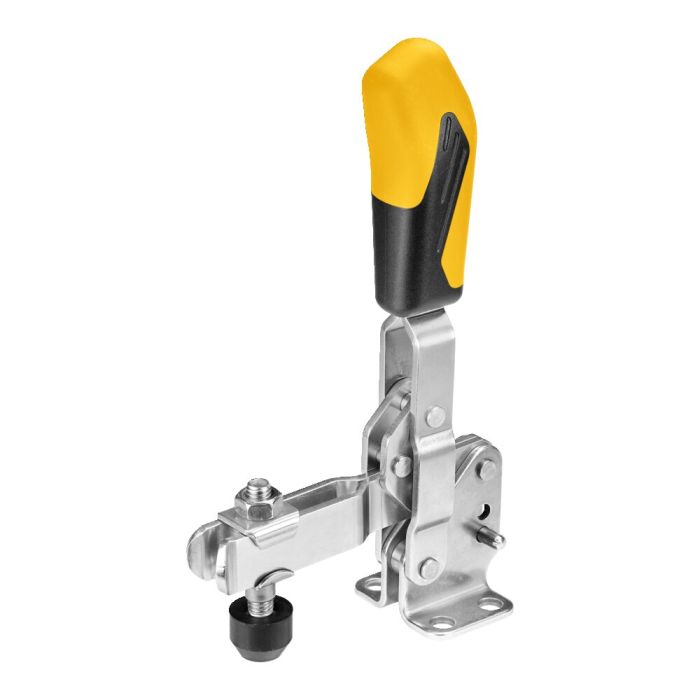

Vertical toggle clamp with yellow handle

With open clamping arm and horizontal base, size 1, max. clamping force 1,1 kN

Order no.

557214

Order no.	Size	F1 [kN]	F2 [kN]	Clamping screw	Weight [g]
557213	0	0,5	0,7	M4x25	60
557214	1	0,6	1,1	M5x30	105
557215	2	0,8	1,2	M6x35	175
557216	3	1,2	2,5	M8x45	410
557217	4	1,7	3,0	M8x65	630

* The opening angle can be changed by pressing in a stop pin.
