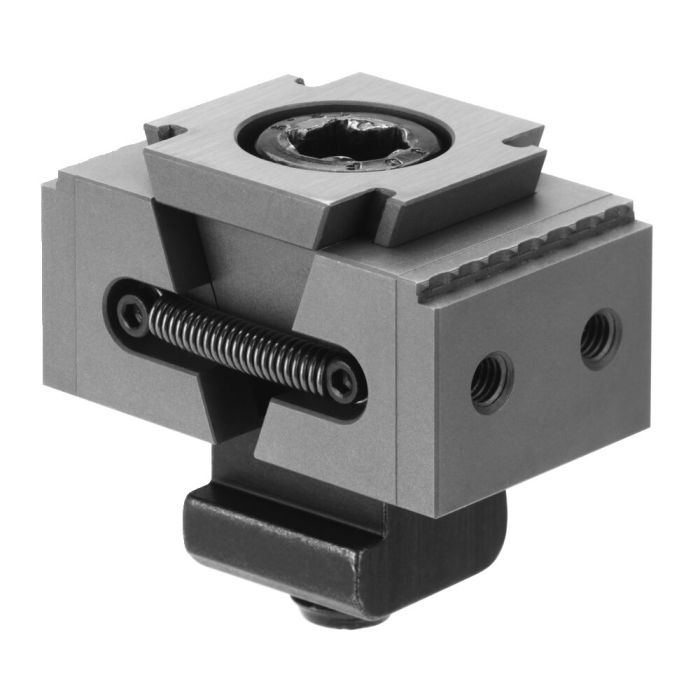

Wedge clamp
With claw jaws, width 40 mm
Order no.
429415
Design:
Material: case-hardened steel 21MnCr5
Highly tempered and case hardened to 52 HRC. Hardness depth 0.6 mm
Application:
Workpieces are clamped quickly and securely with the AMF wedge clamp. Clamping takes place through a socket head screw and the wedge element, which moves the clamping jaw and so presses the workpiece against the stop.
| Order no. | 429415 |
|---|---|
| Operating mode | Mechanical |
| Backenbreite | 40 |
