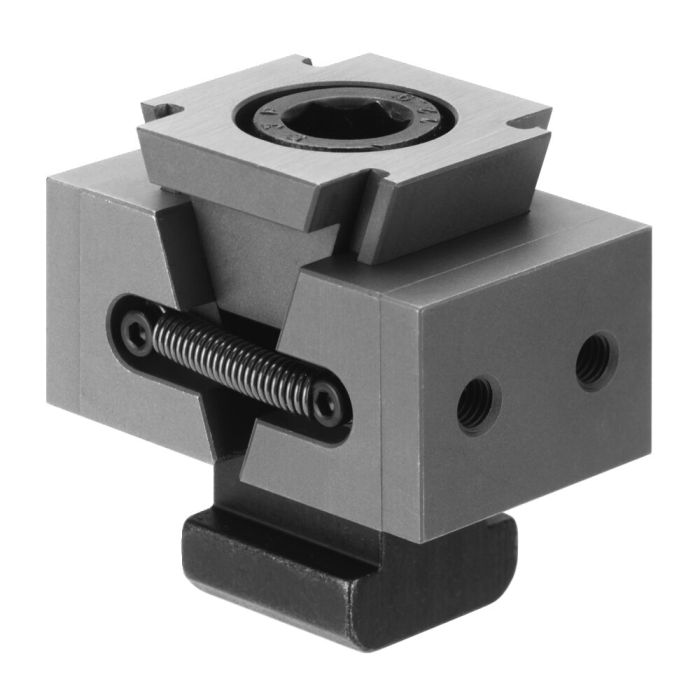

Wedge clamp with measurement

Width 30 mm

Order no.

429662

Product variants

Order no.	Size	A min.*	A max.*	b	B1	G	H min. [mm]	H max. [mm]	H1	L	Md max. [Nm]	Clamping force F [kN]	Weight [g]
429373	72	56,5	68,0	72	36	M6	29	39,0	14,5	44	65	30	1020
429662	30	53,5	61,5	30	15	M5	22	29,5	11,0	44	65	30	350
429688	40	53,5	61,5	40	20	M5	22	29,5	11,0	44	65	30	490
429704	50	53,5	61,5	50	25	M5	22	29,5	11,0	44	65	30	535

Details

Design:
Material: case-hardened steel 21MnCr5
Highly tempered and case hardened to 52 HRC. Hardness depth 0.6 mm
Wedge clamp with tolerance for inserting special geometries.

Application:
Workpieces are clamped quickly and securely with the AMF wedge clamp. Clamping takes place through a socket head screw and the wedge element, which moves the clamping jaw and so presses the workpiece against the stop.

* Includes tolerance for inserting special geometries (5 mm).
